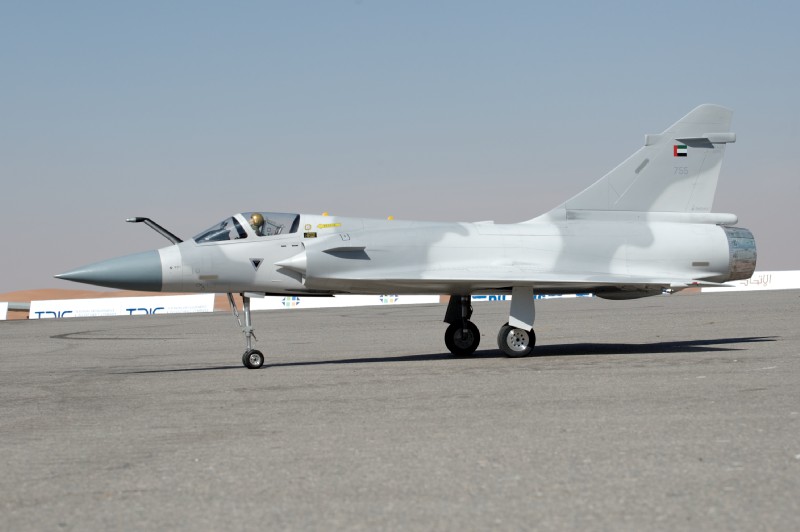

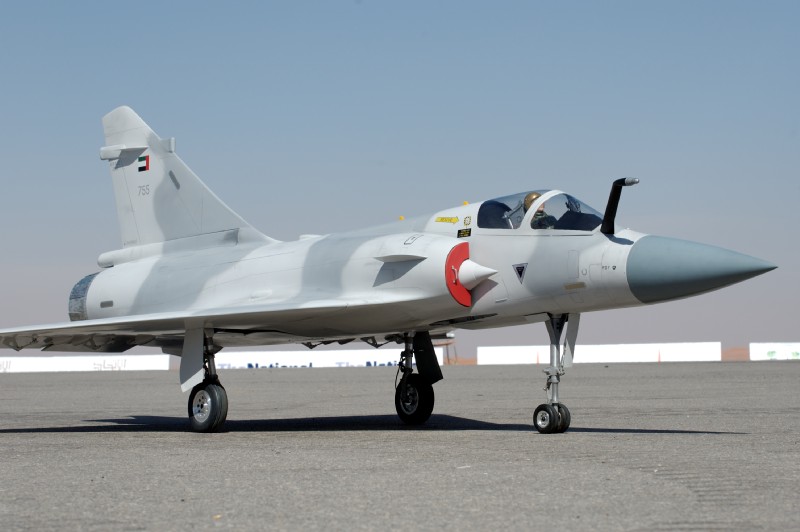

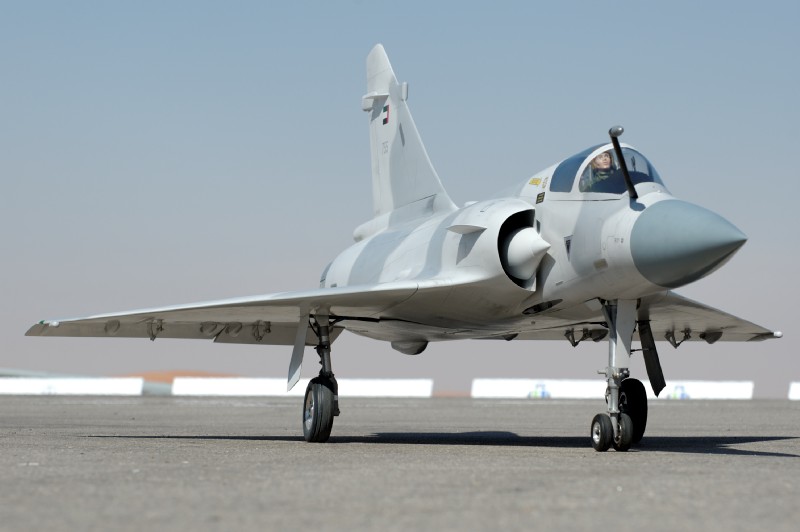

Mirage 2000 1/5th scale

MIRAGE 2000 Scale 1/5

Span 1.83 m 72’’

Length 2.97 m 117’’

Weight with turbine 20 kg 44 lbs

Turbine single turbine, 18 kg (36 lbs) to 22 kg (40 lbs) thrust

The Mirage 2000 is a famous French delta fighter built by Dassault Aviation. It is used in a lot of countries and it is one of the most agile fighters. The Mirage 2000 has a single jet engine.

You love very big models, you love fighter, you love agile and aerobatic jets, you love power : The 1/5 Mirage 2000 is for you.
The Mirage 2000 model is really incredible in flight. It is a very big models, very aerobatic with good roll rate and incredible high angle of attack possibility. Flight is very reallistic and impressive with big turbine sound and afterburner lights.

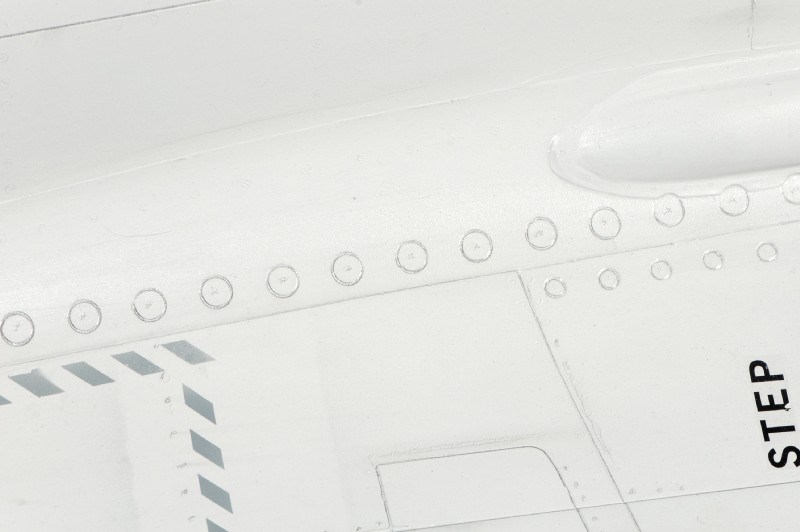

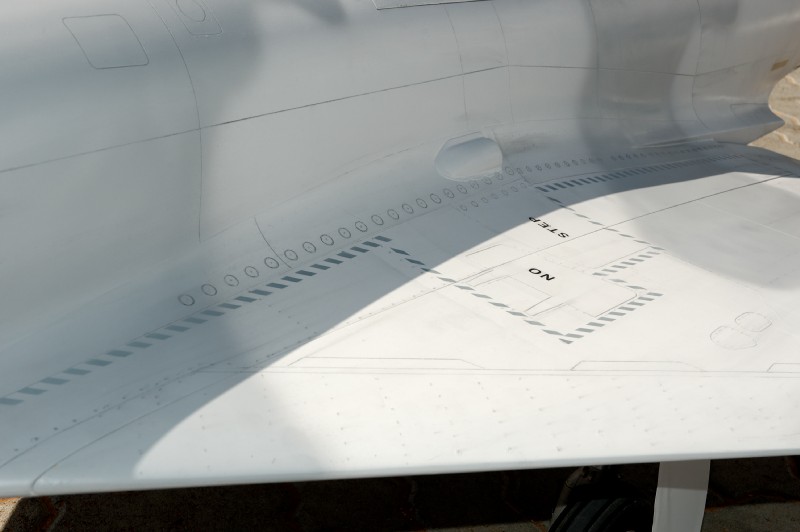

The Mirage 2000 from AVIATION DESIGN is fully CAD designed. Most of the plug parts were CNC machined.. It is a scale model, with all the panel lines and rivets engraved in the fuselage. Plug was covered with aluminium sheet to have scale apparence.
It contains many scale details, (gears, hinges, cockpit...).

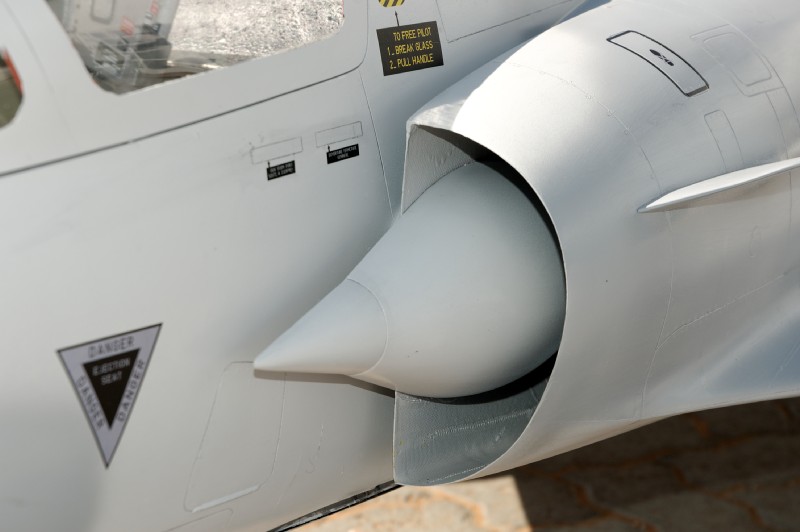

The Mirage 2000 is designed for the new high thrust jet engines and incorporates special inlets and ducting.

Of course the Mirage 2000 is fully molded in composite, and pre assembled : model is painted in mold, all bulkeads are glued, all control surfaces are hinged. No important gluing are required.

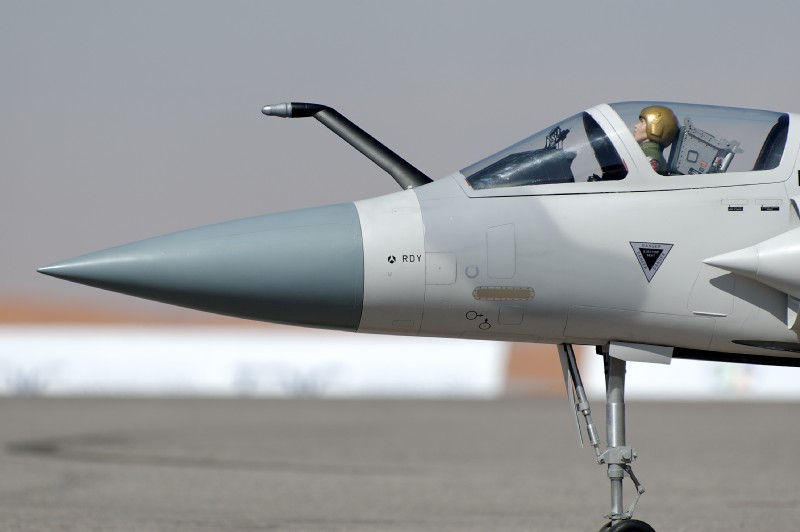

The Mirage 2000 has a removable nose cone and a large canopy for an easy access to radio.

The large fuselage hatch gives also an excelent access to the turbine, fuel sytem and tailpipe.

Our landing gear have been designed for stronger field operation.
This model has plug in wings and fin.

KIT FEATURES:

High quality, grey gel-coated epoxy-glass fuselage. All the panel lines are engraved. The fuselage is in 2 parts for an easier building.
Nose cone in fiber.
Exhaust nozzle in fiber.
Canopy frame in 2 parts in fiber.
Access hatch requiring no additional framework.
2 Epoxy-glass inlets fitted and glued.

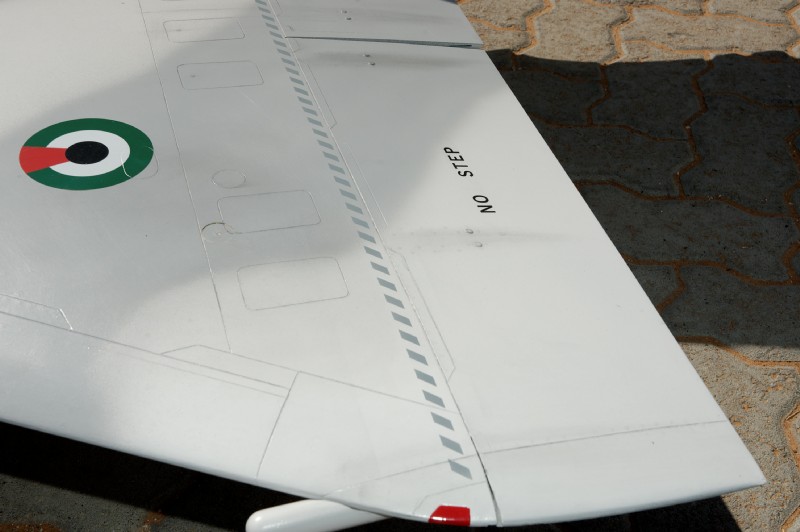

2 Wings molded in epoxy under vaccum with carbon reinforcement, high quality plywood spare, aluminium tube and gear support fitted.

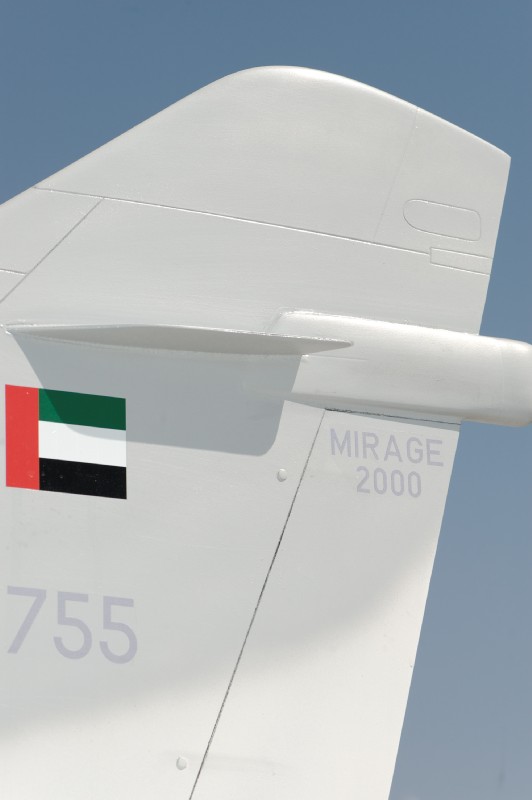

Fully molded composite fin.
Scale fiber details.
ABS cockpit interior and scale accessories.
Clear formed canopy.
Aluminium joining tubes.
Instructions in English.

Parts required to complete the kit:

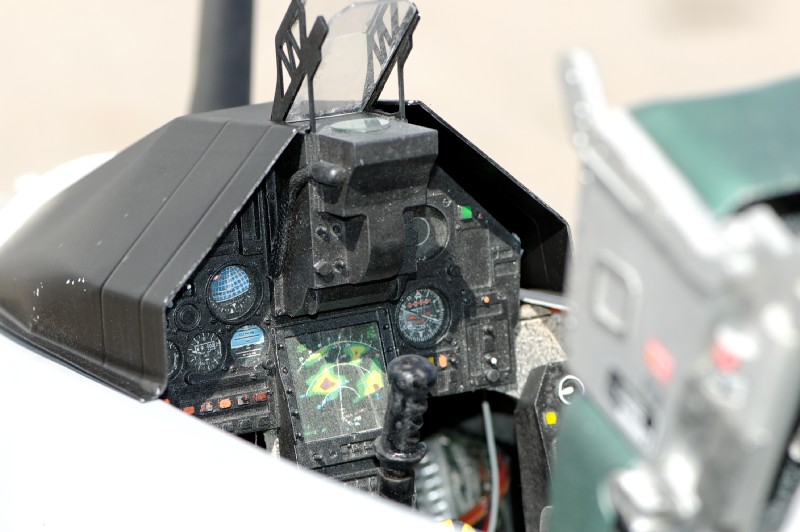

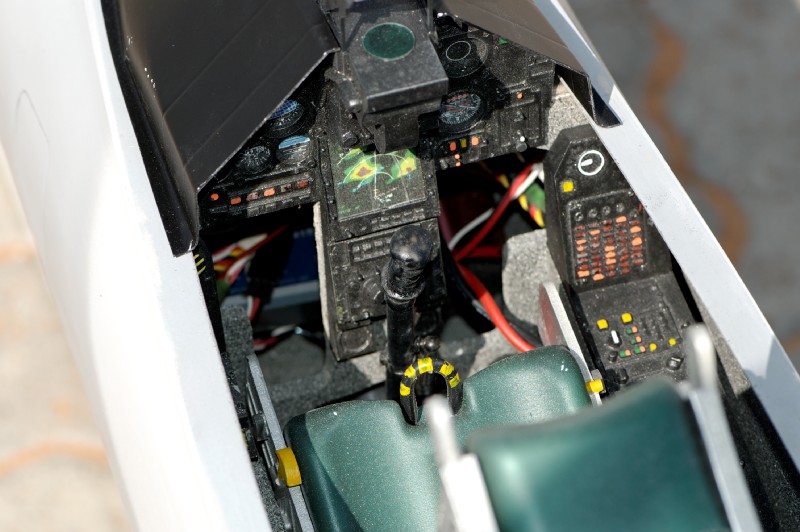

Cockpit detail kit incl. 1/5 ejector seat & scale instrument panel.
Scale retractable landing gear incl. 2 main retracts + 1 front steering retract + air control system + 3 scale oleo legs. All gears are CNC machined and aluminium casting. Very strong and reliable for grass operation.
Scale retractable landing gear + electrovalve.
Wheels set + brakes incl 2 main wheels + 2 front wheels, aluminium hub + bearings + scale brakes + air control system.
Wheels set + brakes + electrovalve.
Gear doors set incl. air cylinders, air control system, gear door sequencer and door hinges.
Gear doors set + electrovalve.
Kevlar fuel tanks (4.2 liters).
Kevlar fuel tanks (4.2 liters) + BVM upper tank.

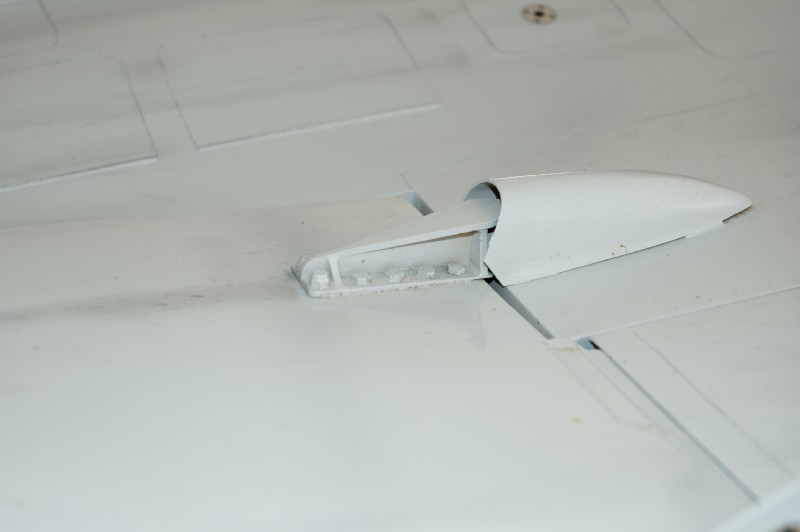

Details set incl. refueling probe, 2 guns and 8 scale hinges.
Stainless steel double walded tailpipe.
2 Magic missiles + wing tip launch rails.
2 Mica missiles + wing launch rails.
2 Mica missiles + fuselage launch rails.
1 Centerline fuel tank + launch rail.
2 large underwing fuel tanks + launch rails.

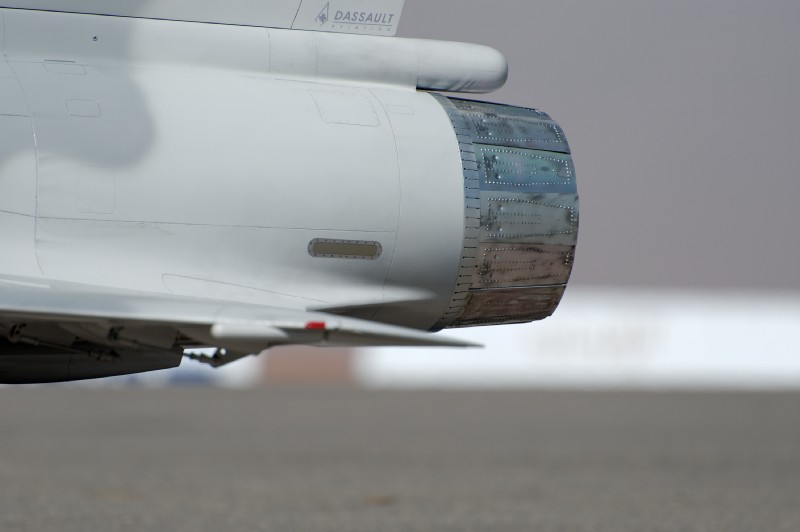

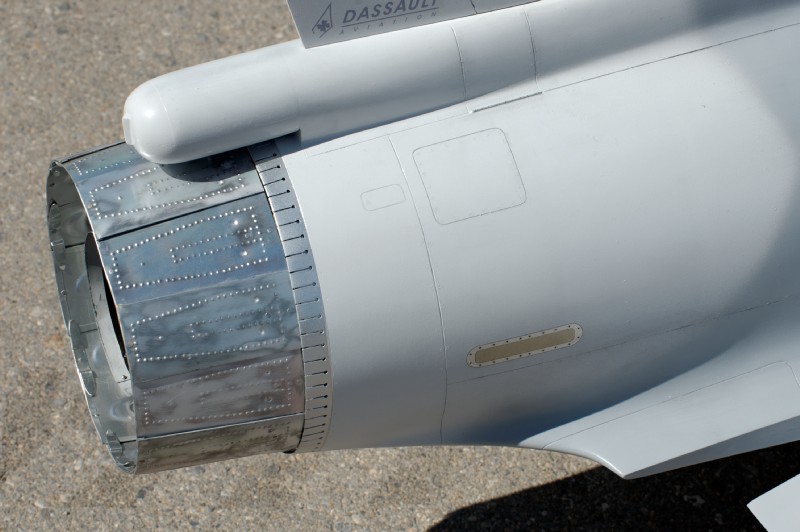

Variable section aluminium tail cone.
Afterburner ring lights.
Water decals french air Force.
Water decals UAE air Force.

Product Details	Price $US

1/5 Mirage 2000 for single turbine	$3,395
Cockpit (including seat, instruments, stick)	$115
Landing gear + standard valve	$2,495
Landing gear + electro valve	$2,595
Wheels set + brakes+ micro switch	$730
Wheels set + brakes+ electro valve	$799
Gear doors set + standard valve	$275
Gear doors set + electro valve	$395
Kevlar Fuel Cell	$240
Kevlar Fuel Cell + UBT	$330
Detail set	$155
Stainless steel tailpipe	$245
2 Magic Missiles (underwing tip) + launch rails	$195
2 Mica Missiles (underwing medium) + launch rails	$195
2 Mica Missiles (under fuselage) + launch rails	$195
Centerline fuel tank� + launch rail	$175
2 Large underwing fuel tanks + launch rails	$295
Variable section aluminium tailpipe cone	$895
Afterburner ring lights	$335
French Air Force water decals	$225
UAE water decals	$225
