The
ANGEL ARF jet designed for 26 - 36 lbs. thrust turbines
Span:
80” - 2.04 m
Length: 94” - 2.38 m
Weight: 29lbs – 13Kgs
Turbine: 26 to 36lbs thrust turbines – Behotec 130,
Behotec 165

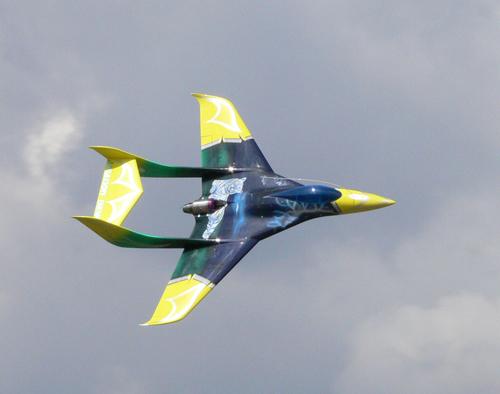

The Angel
is our big jet trainer. It is a full composite ARF kit painted
in the mold ARF kit with the bulkheads already glued in place
and all control surfaces hinged. NO gluing necessary. This
model has plug in wings, stabs and fin booms for an easier
transport. It has the same looks and characteristics as the
Phoenix but 22 % larger.
Characteristics:
- Very easy to fly.
- Grass field operation; short take off/landing due to a big
airfoil thickness (13%)
- Large flaps and very low wing loading
- Very fast assembly
- Easy access to engine (top engine, no hatch, no exhaust
pipe needed)
- Easy access to fuel tank, ECU and radio with a large fuselage
hatch
- Easy radio installation with big fuselage hatch and servo
cover supplied
- All necessary hardware included
Two
Angel schemes available

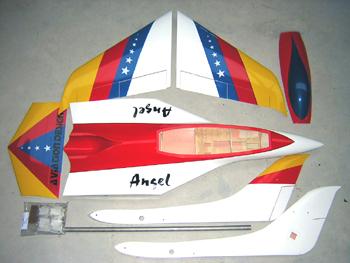

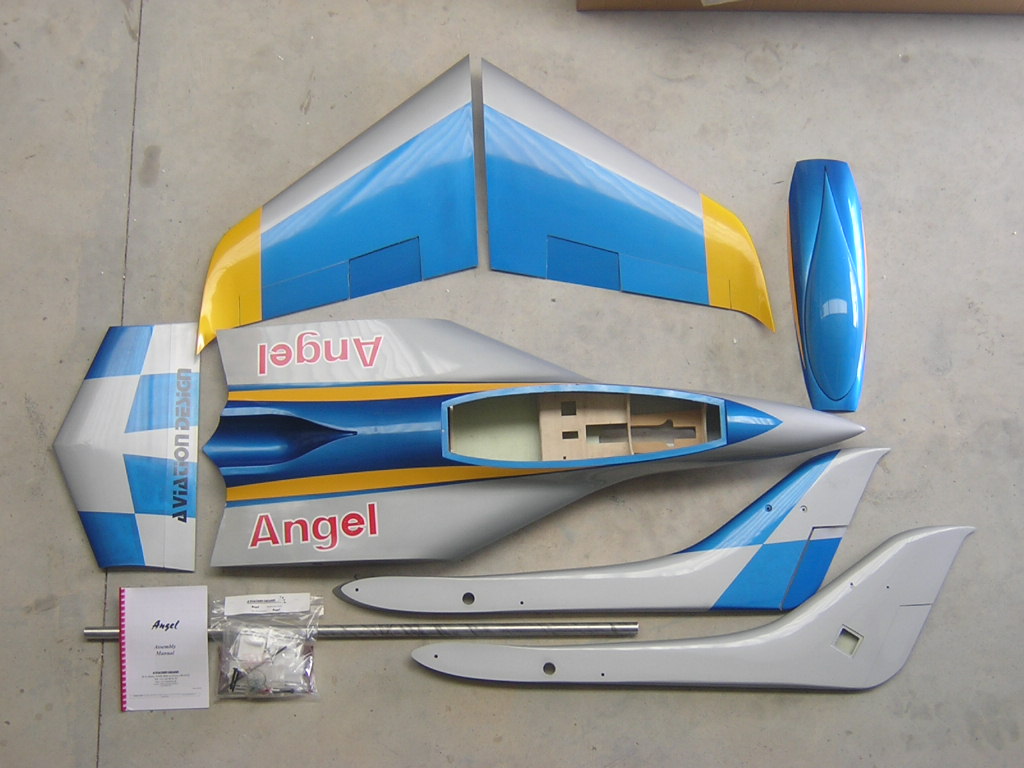

Angel ARF model includes:
-
High quality epoxy-glass fuselage painted
- All plywood and wood parts installed
- Fully molded wings with winglets, stabs and fin booms painted
- Access hatch requiring no additional framework.
- All hardware (screws, servo cover)
- Instruction manual
ANGEL ARF Blue Red Yellow: $US
1,995

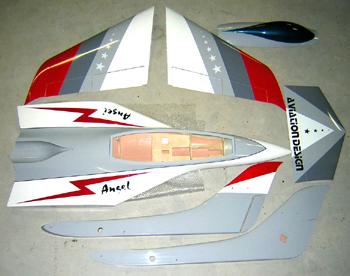

ANGEL ARF Gray Red: $US 1,995
Options:
Kevlar 3.2L
fuel tank: $US 248
Behotec heavy duty C50 Retracts with Trailing link mains and regular
nose, complete with Aluminum ball bearing equipped rims, wheels,
brakes, air support, retract valve as well as brake valve.
ANGEL C50 complete retract set: $US
995

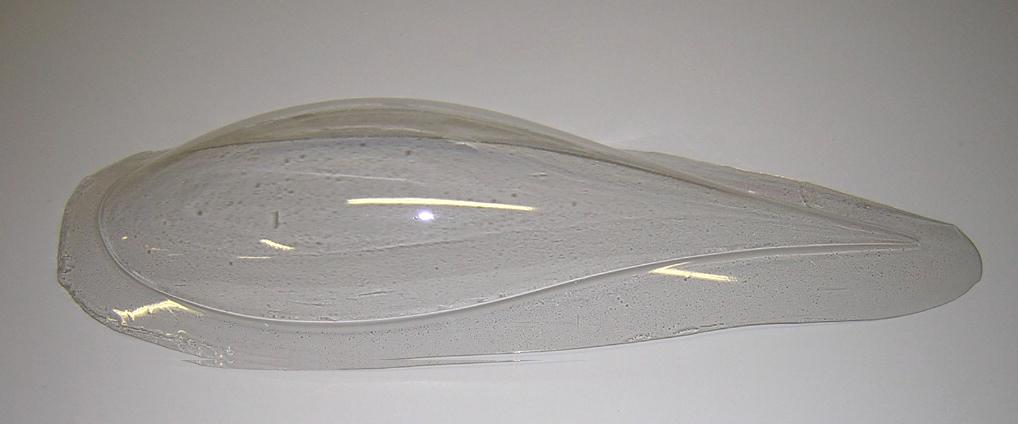

ANGEL clear canopy: $US 30
|
