B100F

120/27lbs of thrust

Quality, Reliability, Service

All turbines Service Interval: 50 Hours, Warranty: 2 years

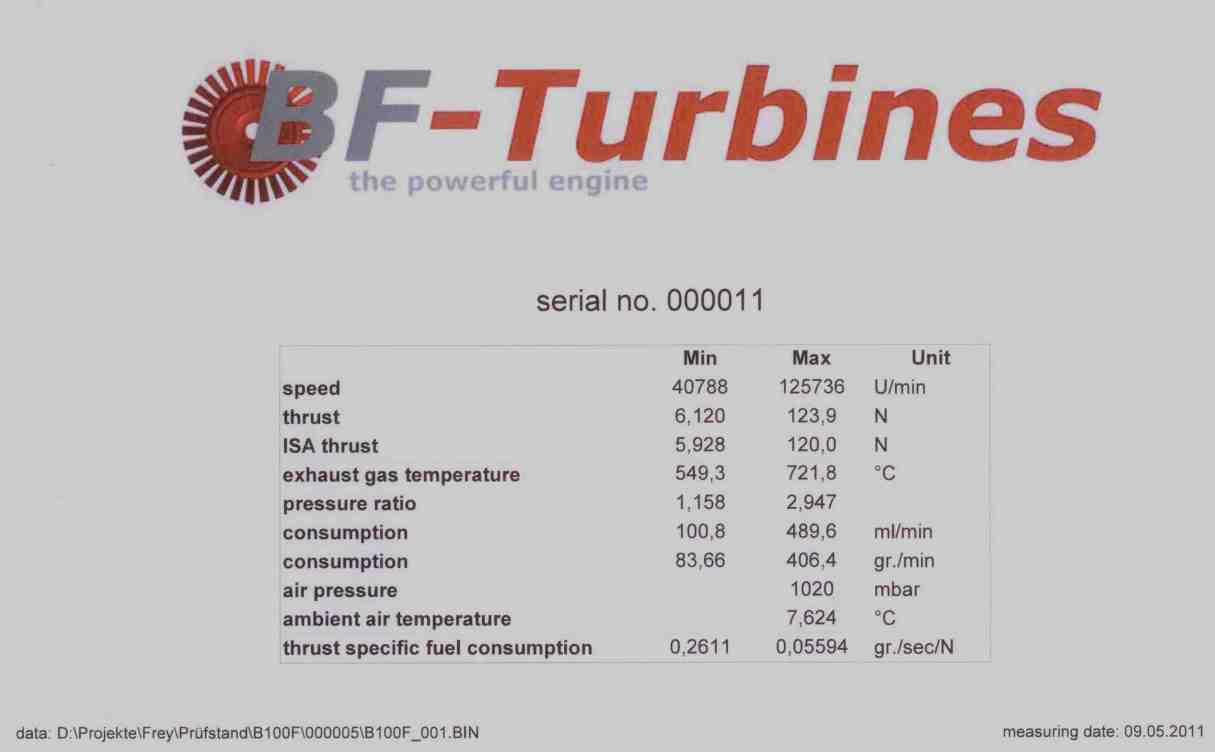

B100F Technical Data:

Diameter: 99 mm

Length: 295mm

Weight : 1,210grams

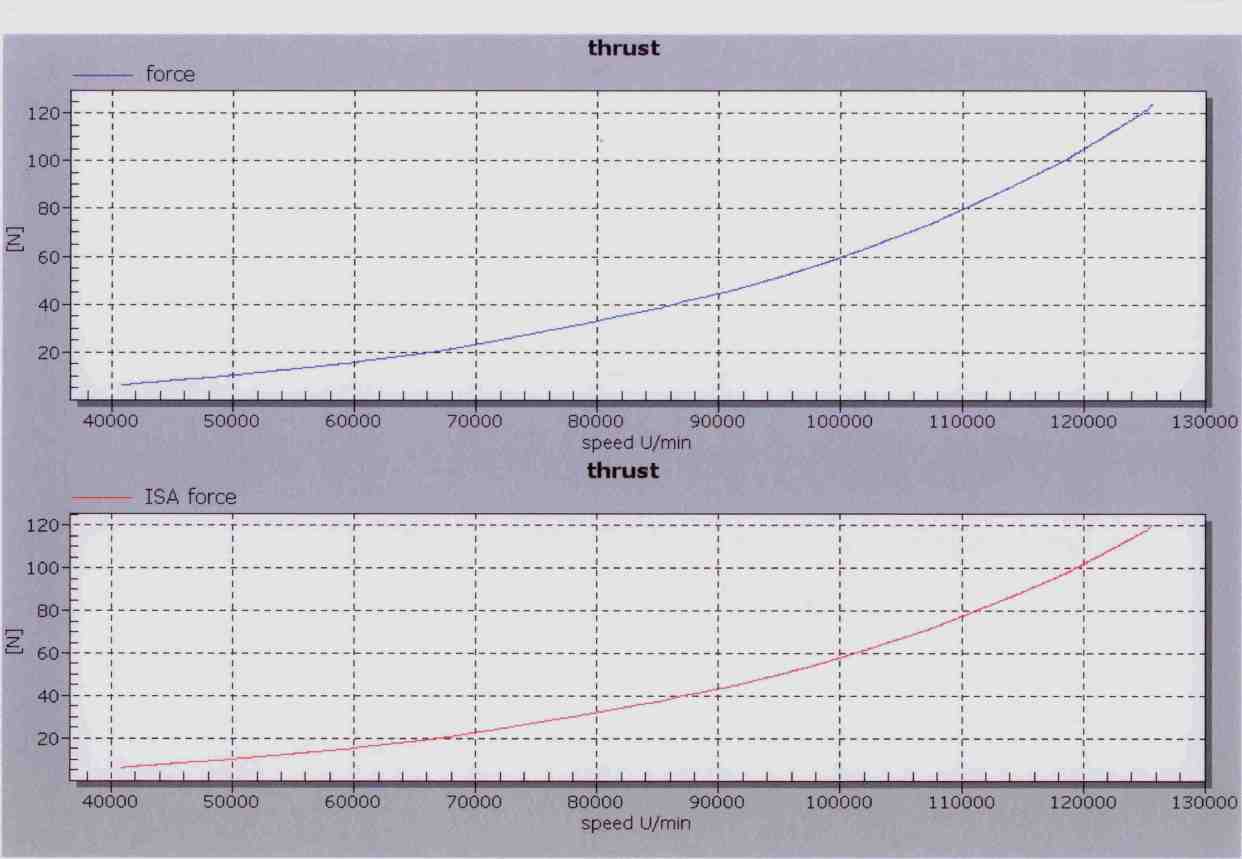

Max. Thrust: 120N (27lbs) at 125,000 RPM

Min. Thrust: 5N (1.12bs) at 39,000 RPM

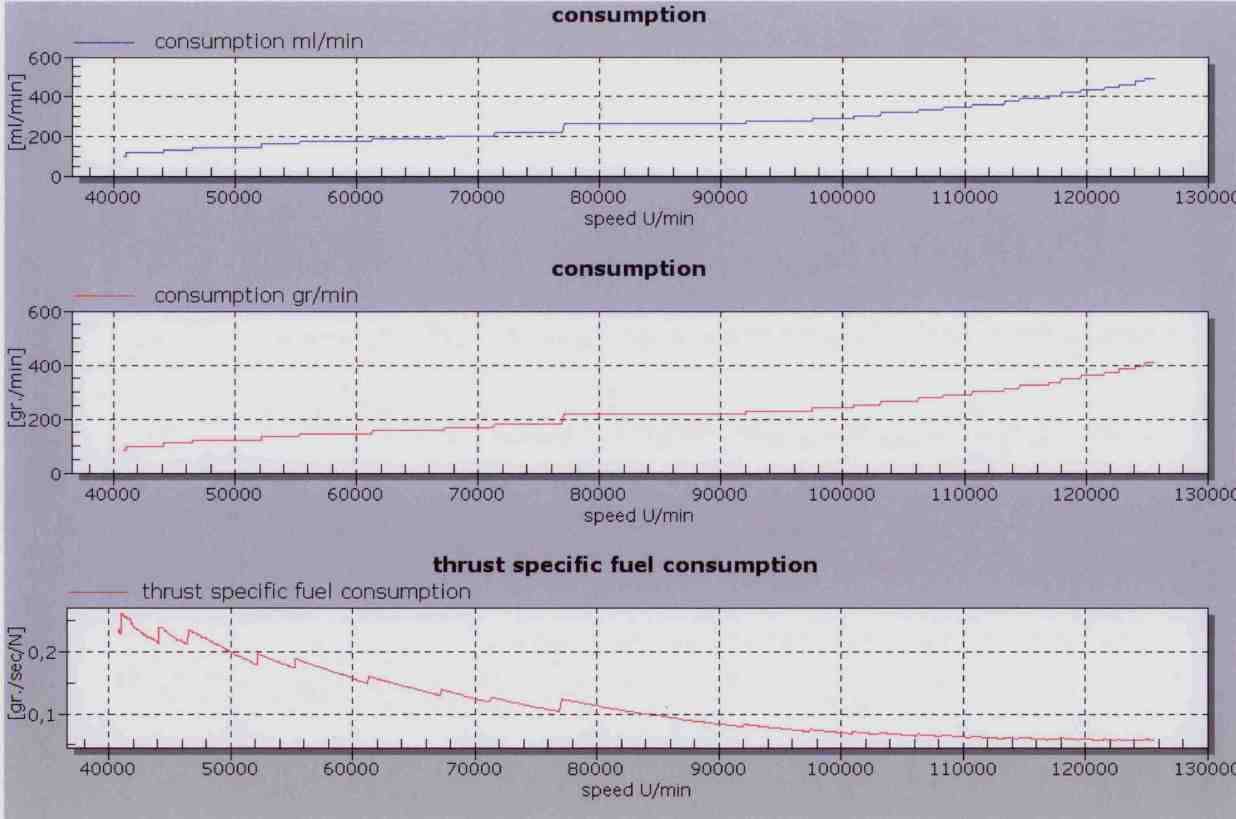

Fuel consumption at full power: 385 ml/minute

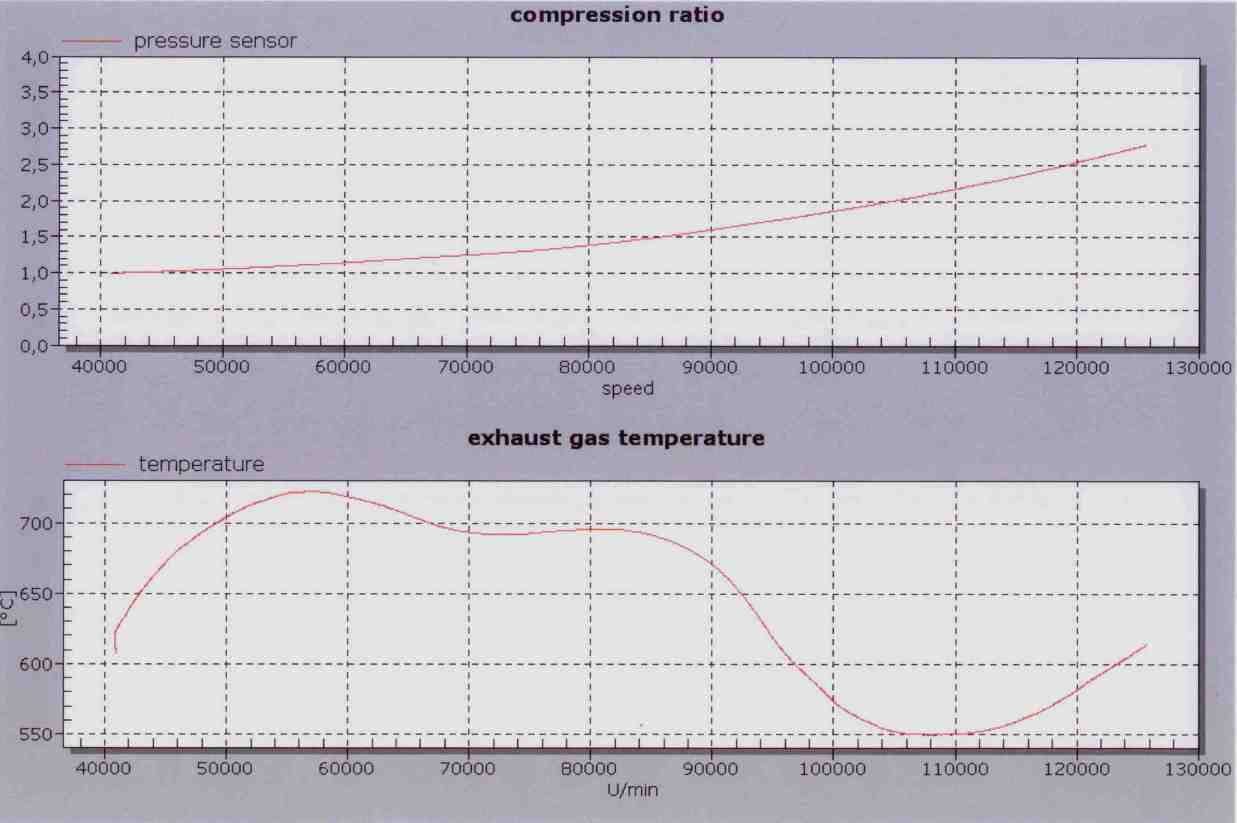

Exhaust gas temperature at full power: 680°-740° Celsius

Acceleration: 1s-60,000 to 125,000

Acceleration: 2.8s-39,000 to 125,000 rpm

Fuel : Kerosene / Jet A 1 mixed with 5% Behotec or Turbine oil - Optional Diesel or Bio Diesel, depending on quality mixed with Turbine oil

Built in Kero Burner and Temp probe

Download B100F Operating Manual

B100F Turbine: $US 2,495
