Behotec Turbines
Quality,
Reliability, Service
70N/15lbs - 85N/19Lbs - 135N/31Lbs -
165N/37Lbs - 180N/45lbs
All engines available in Kero or propane
start
We
are pleased to announce the startup of our service center
in Alabama for the full range of Behotec Turbines, which
will include inspection, preventive maintenance, repairs,
bearing replacements and balancing.
To request service , please email us to obtain a Return
Material Authorization at:
service@altecare.com
Another step we have taken to
ensure customer satisfaction and to assure our customers
that we stand behind our products.
Important
notice about our Kero Start system:
Our
Kero start system is extremely reliable under any temperature
or weather conditions. We have been extensively testing
this system, in the heat and in the cold. You will enjoy
a consistent and reliable start every time and anywhere
you fly
| |
JB180 |
JB165 |
JB130 |
JB66 |
JB55 |
| Diameter
(mm) |
113 |
113 |
113 |
112 |
86 |
| Length
(mm) with starter motor |
320 |
315 |
315 |
292 |
245 |
| Weight
(gr) |
1,600 |
1,500 |
1,500 |
1,350 |
800 |
| Max.
thrust (N) @ 120,000 - JB55 @ 165,000 |
|
|
|
|
|
| Min.
thrust @ 35,000 |
7.5 |
7.5 |
6.8 |
4.5 |
3.5 |
| Consumption
at max rpm (ml/min) |
580 |
550 |
500 |
280 |
230 |
| Exhaust
temp °C |
650 |
670 |
650 |
630 |
630 |
Introducing the new
70N thrust
with
Kerosene Start (in stock)

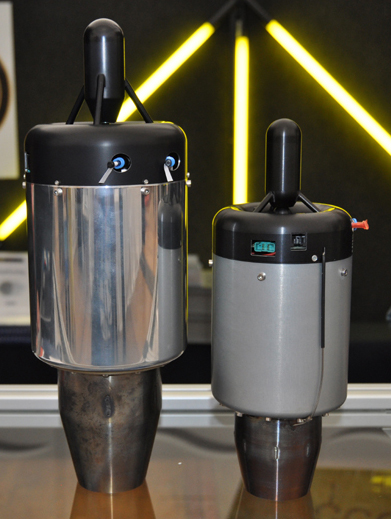

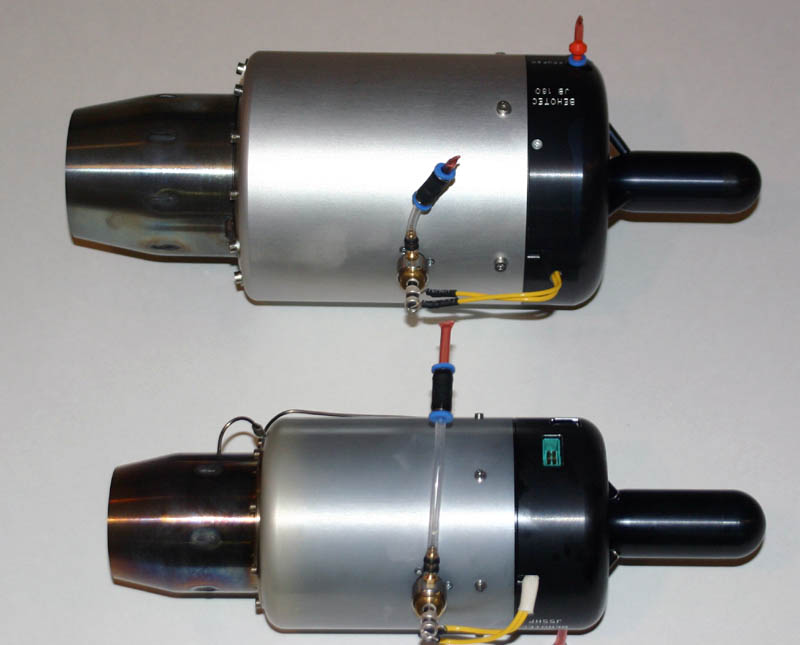

JB180 & JB55 side by side
The
new improved J55HP2 delivers 15N more than the original
55. Special attention to weight, diameter, handling,
choice of materials and of course price.
The J55HP2 is the smallest and lightest turbine produced
in the series. The engine is suitable for small jet
models, Impeller models as well as larger electric
models. There
are NO plastic parts used on the Behotec turbines.
JB55HP2 Specifications:
Diameter:
86 mm
Length: 185 mm (245mm with starter)
Weight: 800gr with starter
Max. thrust 70 N (15lbs) at 165,000 rpm
Min. thrust 3.5 N at 55,000 rpm
Consumption at full power: 230 ml/min
Exhaust temperature: 630°C
Fuel Jet A1, Diesel mixed with 5% turbine oil
The JB55HP2
is deliverd as follows:
J55HP2 turbine, completed
and test run
Pro Jet engine control
unit ( ECU )
Pro Jet ground support
unit ( GSU ) for monitoring and programming
Pro Jet kerosene &
propane valves
All necessary connecting
cables
Pro Jet manuals /
handbook
Behotec kerosene pump
Kerosene & propane
filters, felt clunk, clunk adapter, glowplug wrench,
Tygon tubing, Festo tubings,
Onboard gas canister
Turbine mounting latches
for optional front mounting
Behotec turbine handbook/
instruction manuals
Test run certification
Order
number:
J55HP2 Prop start Price:
$US 2,395
Order
number:
J55HP2 Kero start Price:
$US 2,595

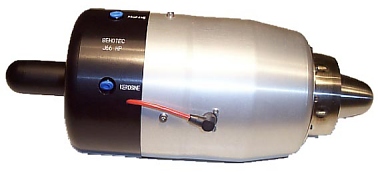

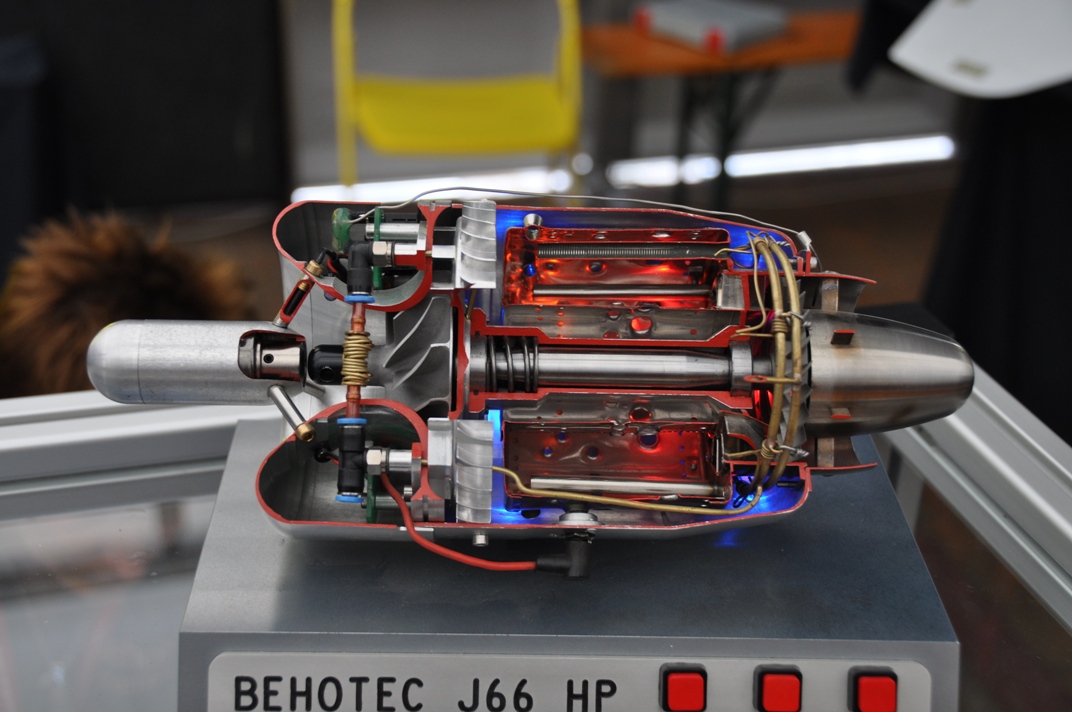

J66 HP–A, 85N (19Lbs) thrust
Behotec is a precision engineering company,
supplying high quality parts for the aviation and aerospace
industry as well as producing parts for medical instruments.
Behotec has been developing jet engines as well as retracts
and brakes since 1992. We offer thrust ratings from 19 to 37lbs
(85N – 165N). These engines are completely produced
by Behotec using the latest CNC technology. German engineering
guarantees repeatable quality, quick service turnaround,
as well as parts availability.

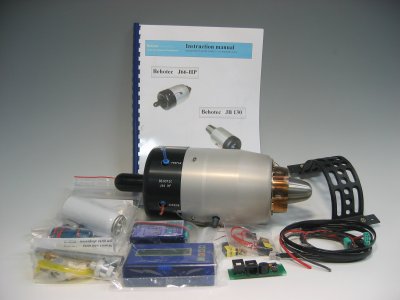

The J66HP-A
consists of :
J66 turbine, completed
and test run
Pro Jet engine control
unit ( ECU )
Pro Jet ground support
unit ( GSU ) for monitoring and programming
Pro Jet kerosene &
propane valves
All necessary connecting
cables
Pro Jet manuals /
handbook
Behotec kerosene pump
( type P -7 )
Kerosene & propane
filters, felt clunk, clunk adapter, glowplug wrench, Tygon
tubing, Festo tubings,
Onboard gas canister
Turbine mounting latches
for optional front mounting
Behotec turbine handbook/
instruction manuals
Test run certification
J66 HP-A Technical Data:
Diameter: 112 mm
Length: 292 mm
Weight : 1,350 grams
Max. Thrust: 85 N ( 19 lbs ) at
120,000 RPM
Min. thrust: 4.5 N (1 lb) at 35,000 RPM
Fuel consumption at
full power: 280ml/minute
Exhaust gas temperature
at full power: 630° Celsius
Fuel : Kerosene / Jet A 1 mixed with 5% Behotec or Turbine oil - Optional
Diesel or Bio Diesel, depending on quality mixed with
Turbine oil
Order
number:
J66HP-A Prop start Price:
$US 2,495
Order
number:
J66HP-A Kero start Price:
$US 2,695
JB130,
135N (31Lbs) thrust
The standard JB130 holds the world speed record for a model
airplane at 576Km/h (360mph)
This powerful engine is tested,
certified and equipped with our AS-2 starter-motor with a Bendix clutch. It is ready to
run out of the box and comes together with the excellent ProJet ECU which requires only one receiver
channel for both, switching
and throttling the engine (the use of a separate switch channel is also
possible).
The ECU is especially adapted to the JB 130’s requirements
and allows fast acceleration/deceleration. Only the very highest quality aircraft grade material is
used. All hardware parts are made in-house by Behotec
except the Festo fittings and tubings. All aluminium
surfaces are anodized black or natural silver. This engine can power a 44lbs airplane.

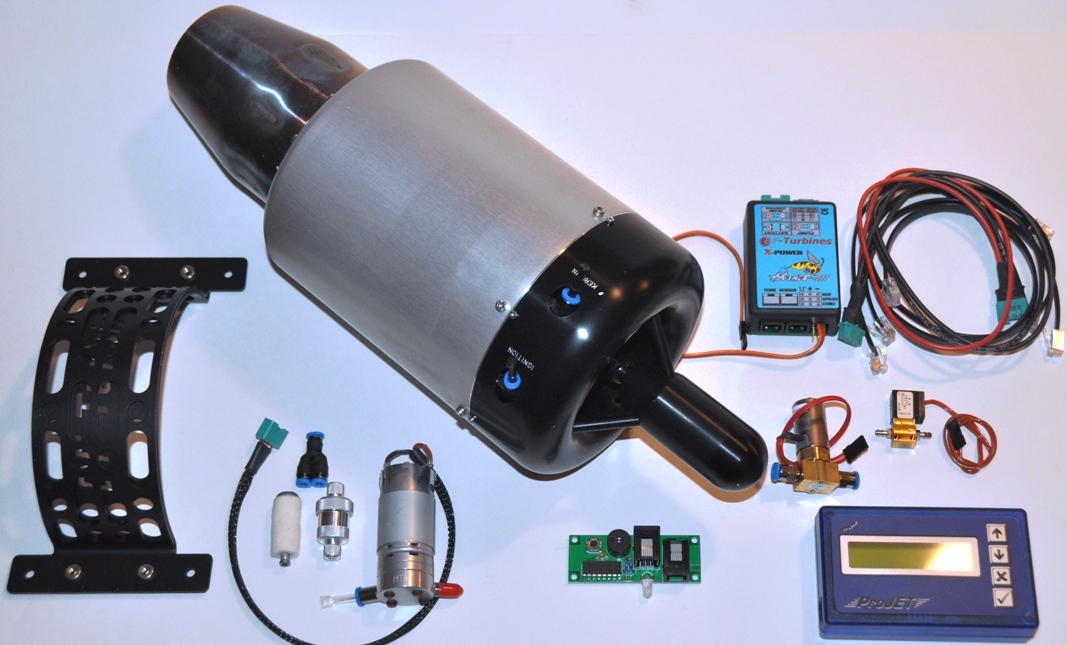

The JB130 consists
of :
JB130 turbine, completed
and test run
Pro Jet engine control
unit ( ECU )
Pro Jet ground support
unit ( GSU ) for monitoring and programming
Pro Jet kerosene &
propane valves
All necessary connecting
cables
Pro Jet manuals /
handbook
Behotec kerosene pump
( type P -8 )
Kerosene & propane
filters, felt clunk, clunk adapter, glowplug wrench,
Tygon tubing, Festo tubings,
Onboard gas canister
Turbine mounting latches
for optional front mounting
Behotec TH- 1
turbine holder (Hotspot –style)
Behotec turbine handbook/
instruction manuals
Test run certification
JB130 Technical Data:
Diameter: 113 mm
Length: 315 mm
Weight : 1,500 grams
Max. Thrust: 135 N [31 lbs] at 120,000 RPM
Min. thrust: 6.8 N [1.5 lbs] at 35.000 RPM
Fuel consumption at
full power: 500 ml/minute
Exhaust gas temperature
at full power: 650° Celsius
Fuel : Kerosene / Jet A 1 mixed with 5% Behotec or Turbine oil - Optional
Diesel or Bio Diesel, depending on quality mixed with
Turbine oil
Order
number:
JB130 Prop start Price:
$US 3,195
Order
number:
JB130 Kero start Price:
$US 3,395

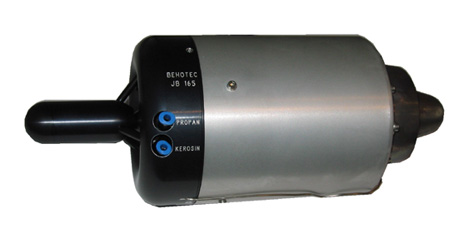

JB165,
165N (37Lbs) thrust
A real power house
This powerful engine is quipped with
our AS-2 starter motor with a Bendix
clutch. It is ready to run out of the box and comes together with the excellent ProJet
ECU which requires only one receiver channel for both, switching and throttling
the engine (the use of a separate switch channel is also possible). The expertly custom made ProJet electronics
are especially adapted to the
JB 165’s requirements and ensures fast acceleration/deceleration.
Our golden rule is Quality and Precision.
This is only possible if all components are machined rom solid blocks. We only use the very highest quality aircraft grade materials. All the
hardware parts are made in-house by Behotec, except Festo fittings and tubings. All aluminium surfaces are anodized black
or natural
silver.
The JB165 consists
of :
JB165 turbine, completed
and test run
Pro Jet engine control
unit ( ECU )
Pro Jet ground support
unit ( GSU ) for monitoring and programming
Pro Jet kerosene &
propane valves
All necessary connecting
cables
Pro Jet manuals /
handbook
Behotec kerosene pump
( type P -8 )
Kerosene & propane
filters, felt clunk, clunk adapter, glowplug wrench,
Tygon tubing, Festo tubings,
Onboard gas canister
Turbine mounting latches
for optional front mounting
Behotec TH- 1
turbine holder (Hotspot –style)
Behotec turbine handbook/
instruction manuals
Test run certification
JB165 Technical Data: Diameter: 113 mm
Length: 315 mm
Weight : 1,500 grams
Max. Thrust: 165 N [37 lbs] at 120,000 RPM
Min. thrust: 7.8 N [1.5 lbs] at 35.000 RPM
Fuel consumption at
full power: 550 ml/minute
Exhaust gas temperature
at full power: 670° Celsius
Fuel : Kerosene / Jet A 1 mixed with 5% Behotec or Turbine oil - Optional
Diesel or Bio Diesel, depending on quality mixed with
Turbine oil
Order
number:
JB165 Prop start Price:
$US 3,695
Order
number:
JB165 Kero start Price:
$US 3,895

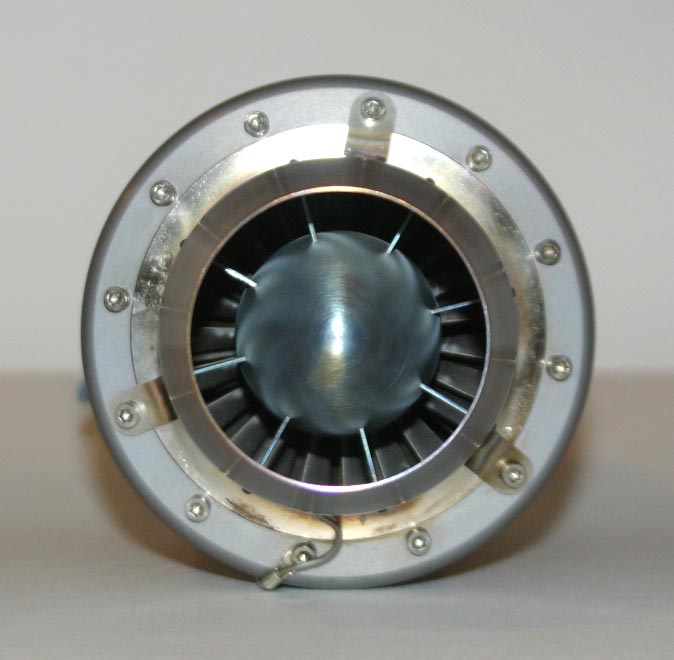

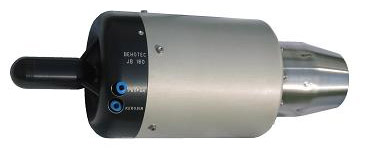

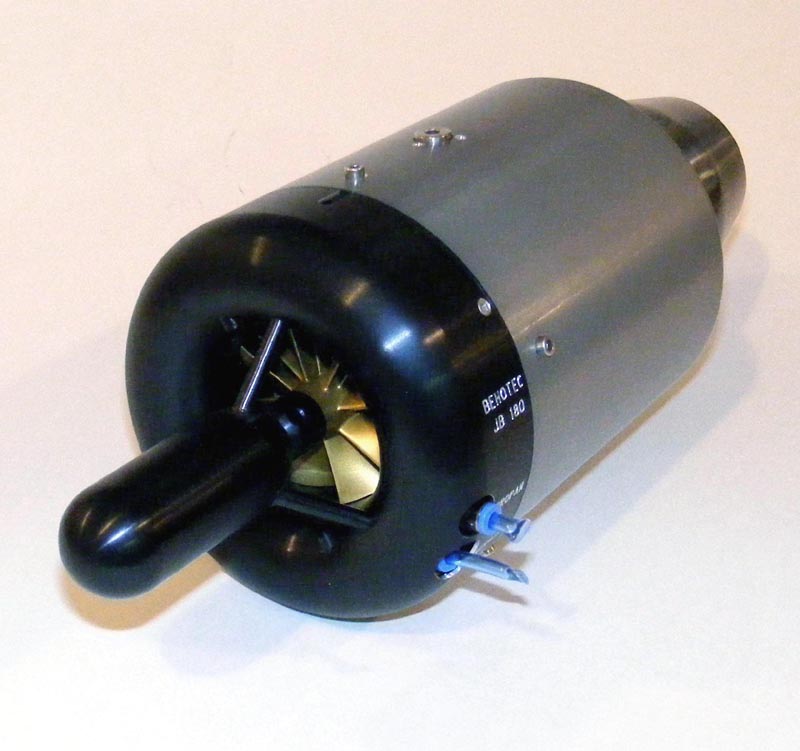

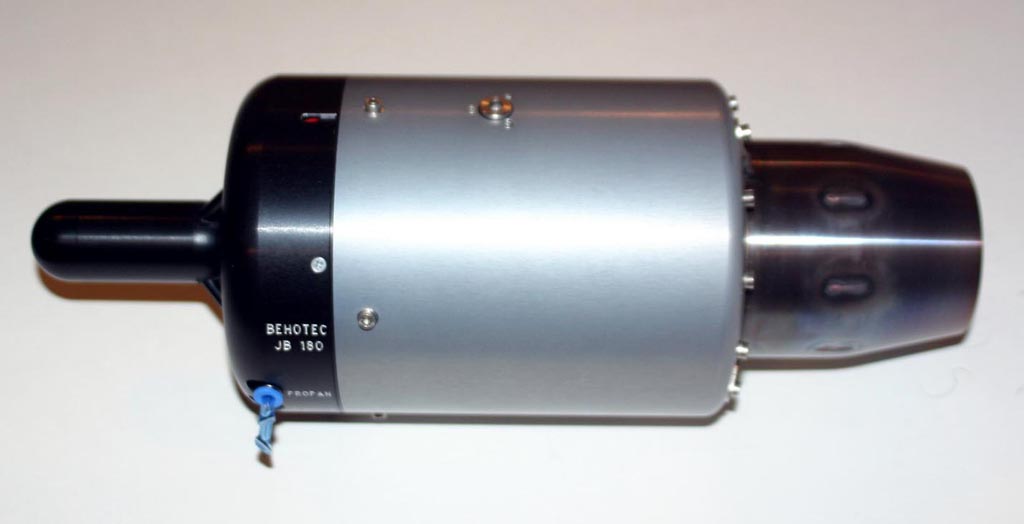

The
JB180 is the latest addition to the Behotec family of
engines.
With
a new style tailpipe and diffuser, the JB180 is a full
auto start system and is delivered with all needed accessories.
There
are NO plastic parts used on the Behotec turbines. The
JB 180 will power models up to and above the 55 lbs class.
Diameter:
113mm
Length: 320mm
Weight: 1.6kG - 3.5Lbs
Max. thrust: 180N - 43Lbs
Min. thrust: 1.8lbs
Fuel consumption@ max.thrust: 580ml/min
Exhaust gas temperature@ max.thrust: 680°C
Fuel: Jet A1, Kerosene, Diesel, (+5% turbine oil)
Acceleration: 35.000 – 120.000 rpm in less than
4s
Order
number:
JB180 Prop start Price:
$US 3,995
Order
number:
JB180 Kero start Price:
$US 4,195
Behotec
Turbines Preliminary Manual
ECU manual download
One year warranty on all turbines
