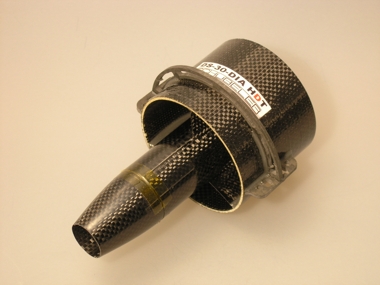

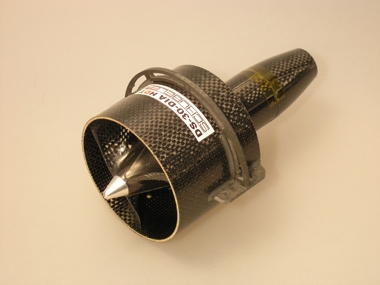

The DS-30-DIA HDT is the successor of the very successful DS-30-DIA 3-ph and has the same "aerodynamic genes" as its predecessor. It converts the shaft power of the motor very efficiently thus providing very high thrust in the whole speed range. Once again the all-molded DS-30-DIA HDT with its high efficiency and improved cooling system sets the benchmark in the 69 mm ducted fan class.

A special feature of this fan is the short and ultra-lightweight carbon-aluminium diagonal-rotor unit running resonance- and vibrationfree. The smooth performance of this rotor enables us to build this ducted fan with a very low tip clearance, thus increasing the total efficiency even more.

All ducted fans of the DS-XX-DIA HDT series come fully assembled, fine-balanced and quality-checked, you simply have to install your motor and the system is ready to fly.

We also offer a "plug and fly" solution with the motor purchased from our product range ready-installed.

 Technical Data:

• Diameter:   69mm
• Fan swept area: 30cm²
• Weight incl. Secure Fan Fix frame: 33g
• Static thrust range: 3,5-17,0N
• Max. motor diameter: 29,3mm
• Speed range: 22.000 ~ 50.000 rpm
• Power input:  0,1 ~ 0,95KW
• Static efficiency:  73%

For installation of this ducted fan we recommend:

.

Parts list:

• Fine-balanced rotor consisting of: spinner, carbon rotor, adaptor, 2 M3x3 screws
• Carbon-sandwich shroud
• Carbon stator already fixed with shroud and motor former
• Carbon motor former
• Carbon streamlined fairing
• 4 M3x5 and M2,5x4 motor screws
• 1 Allen key SW 1,5 Din 911
• 4 1.2mm carbon sticks for centering of the motor
• 1 manual
• Instructions as PDF
• DS-30-DIA HDT: $US 265
• Secure Fan Fix 30HDT: $US 17.95
