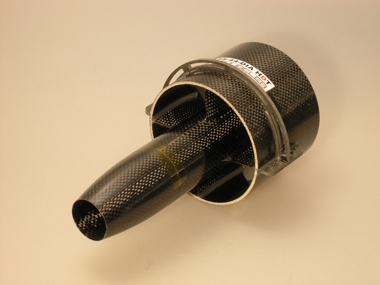

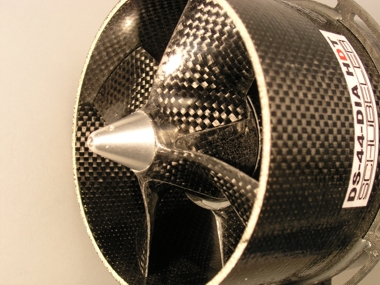

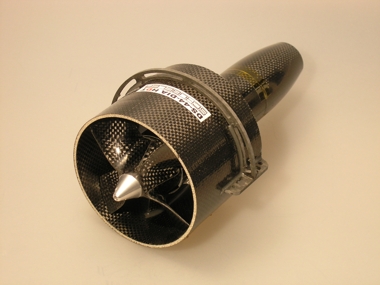

The DS-44-DIA HDT is based on the aerodynamc design of our well proven and established DS-51 ducted fan. The conical hub has a beneficial effect on the pressure build-up due to the diagonal airflow through the rotor. This fan offers a combination of high static thrust (due to efficient blading) and extremly high dynamic thrust at high flying speeds.

The fan is produced with a nominal diameter of 85 mm thus enabling installation in small and fast jets which offer not enough space for 90 mm fans.

Like all our fans the DS-44-DIA HDT  is "made in Paderborn" in all-carbon fibre design. You can rely on the combination of low weight and ultra-high strength! The limiting factor for maximum power input is the motor - not the ducted fan.

All ducted fans of the DS-XX-DIA HDT series come fully assembled, fine-balanced and quality-checked, you simply have to install your motor and the system is ready to fly.

We also offer a "plug and fly" solution with the motor purchased from our product range ready-installed.

 Technical data:

• Diameter: 85mm
• Fan swept area: 44cm²
• Weight incl. Secure Fan Fix frame: 57g
• Static thrust range: TBA
• Max. motor diameter: 38mm
• Speed range: 22.000 ~ 45.000 rpm
• Power input: TBA
• Static efficiency: TBA

For installation of this ducted fan we recommend:

Parts list:

• Fine-balanced rotor consisting of: spinner, carbon rotor, adaptor, 4 M3x3 screws
• Carbon-sandwich shroud
• Carbon stator already fixed with shroud and motor former CFK Motorspant
• Carbon motor former
• Carbon streamlined fairing
• 4 M3x5 motor screws
• 1 Allen key SW 1,5 Din 911
• 4 1.2mm and 1.5mm carbon sticks for centering of the motor
• 1 manual
• Instructions as PDF
• DS-44-DIA HDT: $US 315
• Secure Fan Fix 44HDT: $US 19.95
