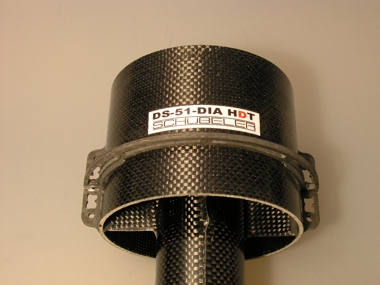

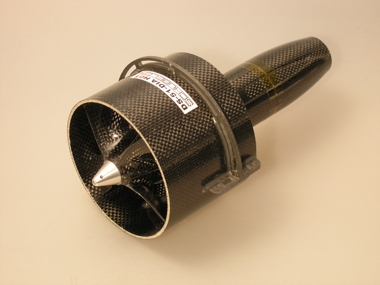

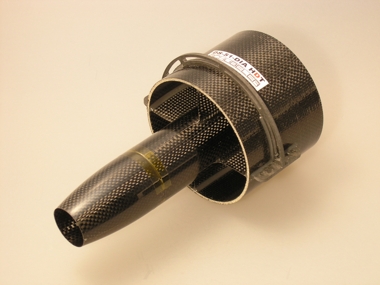

As successor of the well-known DS-51-DIA 3-ph the DS-51-DIA HDT benefits from its predecessor's excellent aerodynamic design and also offers the perfect synthesis of high static and enormously high dynamic thrust.

Cooling airflow has been optimized (as for all new HDT ducted fans) by an enlarged opening of the streamlined fairing. The optionally available Secure Fan Fix System enables exact installation within the fuselage.

All ducted fans of the DS-XX-DIA HDT series come fully assembled, fine-balanced and quality-checked, you simply have to install your motor and the system is ready to fly.

We also offer a "plug and fly" solution with the motor purchased from our product range ready-installed.

 Technical data:

• Diameter: 90mm
• Fan swept area: 51cm²
• Weight incl. Secure Fan Fix frame: 59g
• Static thrust range: 10 ~ 33N
• Max. motor diameter: 38mm
• Speed range:  22.000 ~ 41.000rpm
• Power input:  0.3 ~ 1.9KW
• Static efficiency: 78%

For installation of this ducted fan we recommend:

Parts list:

• Fine-balanced rotor consisting of: spinner, carbon rotor, adaptor, 4 M3x3 screws
• Carbon-sandwich shroud
• Carbon stator already fixed with shroud and motor former
• Carbon motor former
• Carbon streamlined fairing
• 4 M3x5 motor screws
• 1 Allen key SW 1,5 Din 911
• 4 1.2mm and 1.5mm carbon sticks for centering of the motor
• 1 manual
• Instructions as PDF
• DS-51-DIA HDT: $US 315
• Secure Fan Fix 51HDT: $US 20.95
