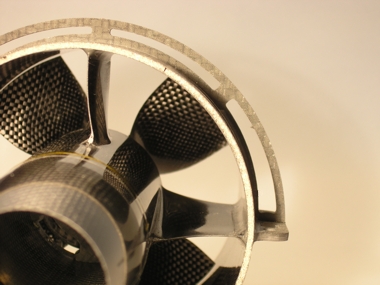

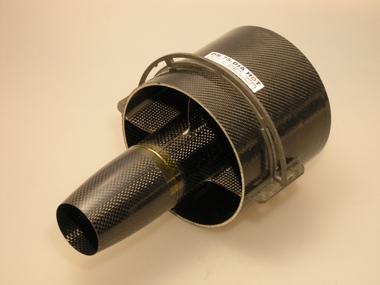

The DS-75-DIA HDT is based on the larger DS-94-DIA HDT and constructed in the same way with its outer diameter being reduced to 110mm. The smaller DS-75-DIA HDT can be used in models of the former 7.5cm³ ducted fan class.

Such models can be powerfully flown with motors of the 460g class and a power input of 2.9KW. The use of slightly smaller drive components and batteries results in an excellent price-performance ratio for our 110mm fan.

But our DS-75-DIA HDT even provides more potential: This fan can also handle power inputs of far more than 5KW thus being ideal for classy speed jets. Exhaust speeds of more than 96m/s provides best chances for new speed records.

All ducted fans of the DS-XX-DIA HDT series come fully assembled, fine-balanced and quality-checked, you simply have to install your motor and the system is ready to fly.

We also offer a "plug and fly" solution with the motor purchased from our product range ready-installed.

 Technical Data:

• Diameter: 110mm
• Fan swept area:  75cm²
• Weight incl. Secure Fan Fix frame: 123g
• Static thrust range: TBA
• Max. motor diameter: 45mm
• Speed range: TBA
• Power input: 1.0 ~ 5,7KW
• Static efficiency: 78%

For installation of this ducted fan we recommend:

Parts list:

• Fine-balanced rotor consisting of: spinner, carbon rotor, adaptor, 4 M4x4 screws
• Carbon-sandwich shroud
• Carbon stator already fixed with shroud and motor former
• Carbon motor former
• Carbon streamlined fairing
• 4  M4x6 and M3x6 motor screws
• 1 Allen key SW 2,0 Din 911
• 4  2.5mm carbon sticks for centering of the motor
• 1 manual
• Instructions as PDF
• DS-75-DIA HDT: $US 395
• Secure Fan Fix 75HDT: $US 21.95
