Fouga
Specifications:
Scale: ¼ - Wing span: 120’’ - Length
: 99" - Weight : 37- 40 Lbs
Designed for a single turbine up to 35lbs of thrust
Introduction:
The Fouga Magister has been the French jet trainer for
the Air Force and the Navy since 1957. It was built by
a small french company Castel Mauboussin, now called Aerospatial
EADS.... More than 900 Fouga have been built and a lot
of them are sold worldwide. (Germany, Austria, Brasil,
Finland, Ireland, Israel, ...). Until 1981, the Fouga
was used by the ‘’Patrouille de France’’,
the french aerobatic team display. All the french Fouga
are now retired and a lot of them are now flying by private
pilot all over the world.
The Fouga Magister from AVIATION DESIGN is designed for
a single turbine.
It is a scale kit, built from the original ‘’Castel
Mauboussin factory’’ plans from 1955. All
the panel lines and rivets (about 15 000) are engraved
in the fuselage and wings.
It is fully molded in fiberglass, carbon and epoxy. Up
to 80% of the work is done in our factory. The flight
characteristics are excellent. It is a very easy to fly
model, with a excellent stability. Take off is not a problem
: just throttle up and the Fouga will take off automatically.
All aerobatics manoevres can be done, the loops are enormous,
rolls can be done fast or slow. Inverted flight is not
a problem. For landing, the air brakes are powerfull and
they have no pitch effect, so landing precision is excellent.
The Fouga has also very good low speed capability.
If
you should get a flameout, you can do a complete circuit
and a perfect landing without a problem. Fuel tanks are
designed large enough (4 liters) to have a minimum of 10
minutes of flight without problem. The Fouga Magister will
operate from prepared grass fields or tarmac surfaces. Minimum
size engine is a single 10 kg (22 lbs) thrust turbine. It
will take off from grass in about 200 meters (650 ft) and
150 meters (490 ft) from tarmac
Maximum size engine is a single 16 kg (40 lbs) thurst turbine.
It will take off in about 50 meters (160 ft) from tarmac
and 70 meters (230 ft) from grass.
The model has plug in wings and stabs. The fuselage can
be disassemble in 2 parts for transportation and access
to bifurcated pipe.
The Fouga Magister is designed for an easy assembly and
an easy utilisation and maintenance. The big hatches give
a good access to the radio, batteries, engine equipment,
fuel tank, pump and to the bifurcated tailpipe.
Of course the Fouga Magister is fully composite (glass and
carbon epoxy) to reduce the assembly time, and improve the
overall quality.
Fouga KIT- ref ADJ 500: $US 2,895
- The wing are molded with carbon reinforcement. The aluminium
wing spar, the alignment pins are factory installed.
- The 2 stabs (called butterfly stabs) are also molded with
carbon reinforcement.
- The 2 canopy hatches are molded in epoxy and the canopy
fitting is easy.

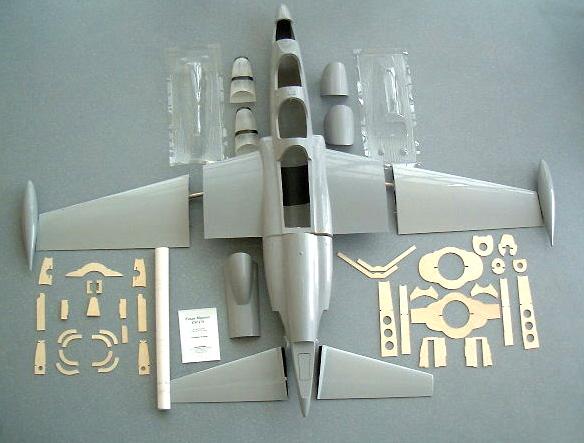

KIT FEATURES : ref ADJ 500
- High quality, grey gel-coated epoxy-glass fuselage. All
the panel lines and rivets are engraved. The fuselage is
in 2 parts for shipping.
- Front hatch for radio and engine hatch requiring no framework
molded in epoxy glass
- 2 Canopy frames molded in epoxy-glass
- 2 Epoxy-glass inlet ducting
- Fully molded epoxy carbon wings with aluminium spar already
glued.
- Fully molded epoxy carbon stabs
- Wing tip tanks
- All plywood and wood parts pre-cut to shape where necessary.
- 2 Clear formed canopy.
- Full size CAD plans & instructions in English
Optional Items
Hardware package - ref ADJ 503: $US 160
Following items are included in the hardware package
For the fuselage :
All screws and nuts
M2 link for steering
Special tube for wiring
1 ball link M2
For the canopy and the hatch :
3 hatch latches + door hinge
For the stabs :
All hinges + ball link
Aluminium control arms
All screws
For the wings :
All hinges + link
All screws
Servo covers
Kevlar Fuel tanks - ref ADJ 520K: $US 395
2 Fuels cells molded in kevlar. Capacity : 4.0 liters
Includes tubing, nipples and clunks + 1 upper tank

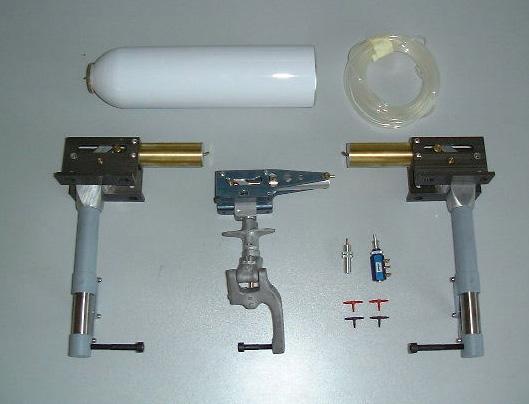

Complete retract system - ref ADJ 505: $US 1,695
Aviation Design scale retractable landing gear is specially
designed for the Fouga Magister.
It is made in aluminium and steel and includes 3 retracts
system, 3 scale oleo legs, 4 way valve, tubing, connectors,
air tank, filling valve
2

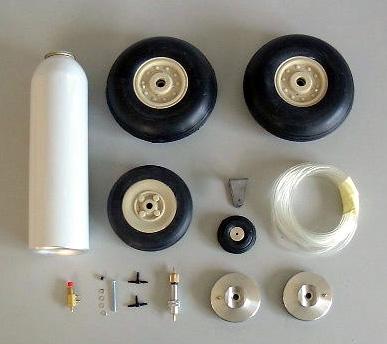

x 115 mm diameter wheels + scale cover + 2 brakes
1 x 85 mm diameter scale front wheel + scale hub
1 x 37 mm tailwheel + aluminium support
It includes also valve, tubing, connectors, air tank, filling
valve.
Gear doors kit - ref ADJ 515: $US 245
Includes 3 air cylinders, electronic gear door cycler, 4
way valve, tubing, connectors, door hinges, ball links.

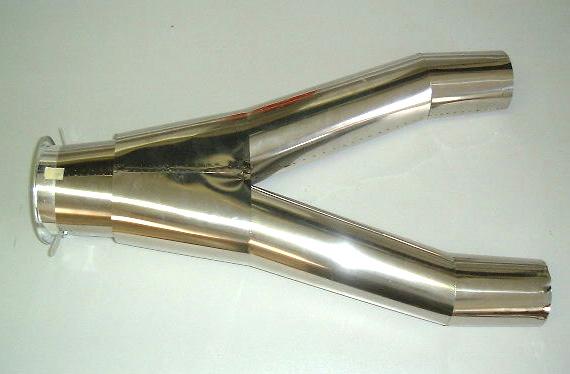

Bifurcated,
double walled stainless steel tailpipe - Supplied by TAM
Jets
Air

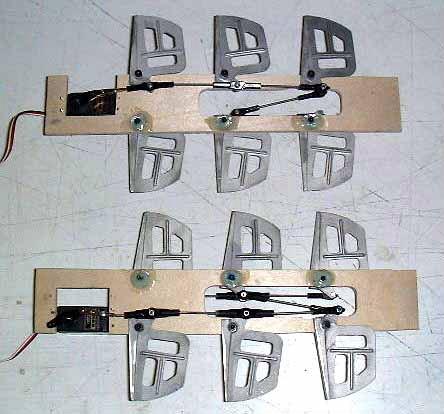

brakes - ref ADJ 525: $US 265

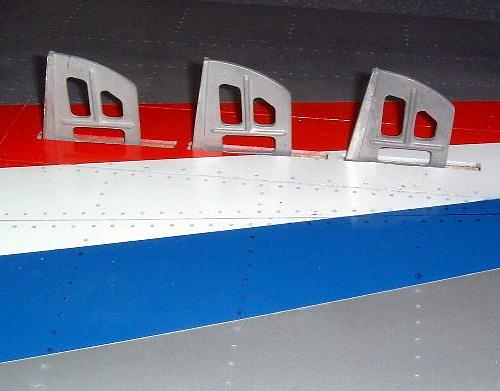

I ncludes 12 aluminium cast air brakes, plywood frame, ball
links, linkage and screws

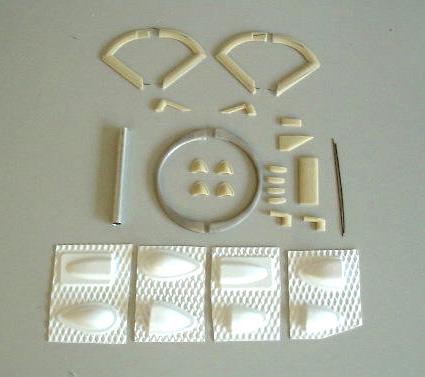

Detail set - ref ADJ 527: $US 115
This set includes all ABS covers, plastic details, resin
antena, aluminium cast antena
Cockpit set - ref ADJ 530: $US 285

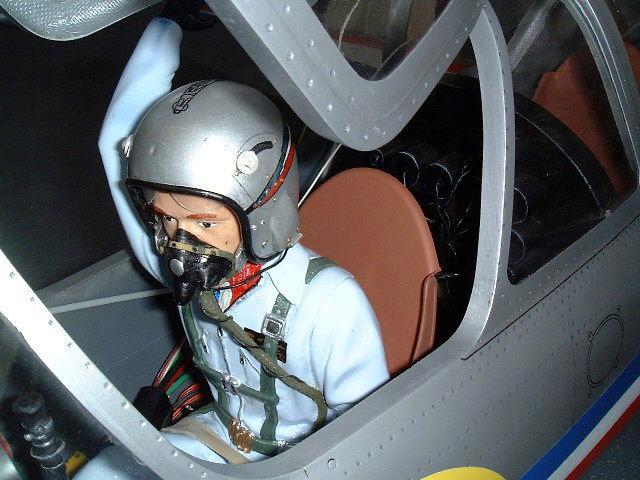

- 2 instrument panel molded in resin with all scale details

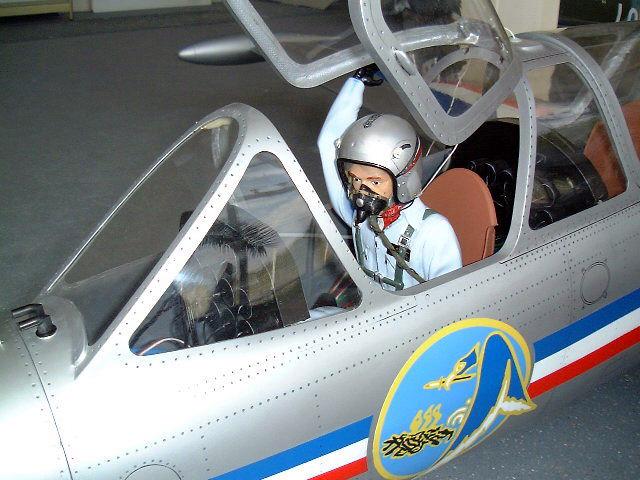

- 2 x ¼ scale pilots + 2x french helmets. Pilots
are molded in plastic, helmets are in resine with all scale
details
- 2 pilot seats molded in resin and ABS parts
Kevlar Fuel tank for smoke system - ref ADJ 521K:
$US 225
Fuel cell molded in kevlar. Capacity : 1.2 liters
Includes tubing, nipple and clunk
