IMPORTANT
CG location: After
extensive testing, the CG location indicated in the manual
is too forward to ensure a smooth and consistent landing.
We recommend the CG to be anywhere from 150 to 160mm instead
of 128mm as indicated in the manual. The new manuals will
reflect this change. You should need no lead in the nose or
heavy NiCd batteries.
Grass
operation: Since
most of us do not have the luxury of tarmac fields around
us, we found the Phoenix perfectly suited for short grass
field operation (300ft). A 2 degree +ve angle of attack will
ensure a very smooth rotation on take-off. You can achieve
this by using a larger nose wheel or inserting 1/4" ply
under the retract unit.

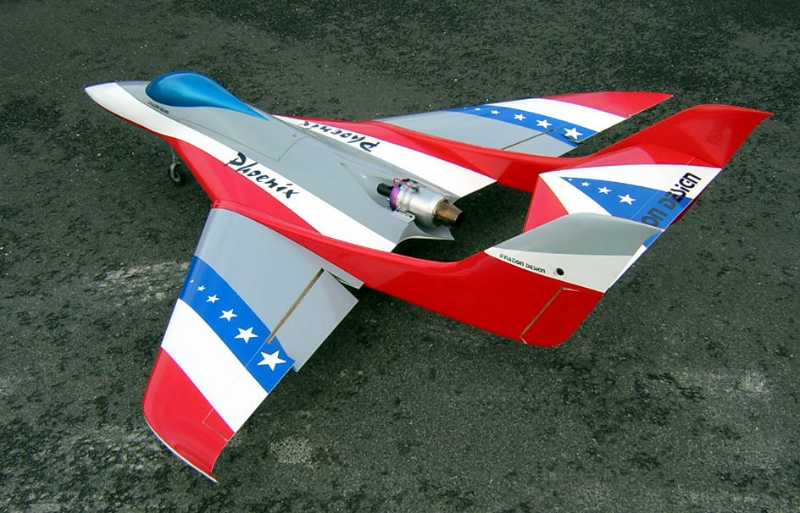

The
Phoenix ARF jet designed for 11- 19lbs. thrust turbines
Span:
71 ” - 1.80 m
Length: 74” - 1.88 m
Weight: 16.5lbs - 7.5 kg
Turbine: 14 to 19lbs thrust turbines – WREN54MKIII,
WREN SS, Behotec 66
The
Phoenix is an excellent jet trainer. It is a full composite
ARF kit painted in the mold kit with the bulkheads already
glued in place and all control surfaces hinged. NO gluing
necessary. This model has plug in wings, stabs and fin booms
for an easier transport. It has the same looks and characteristics
as its bigger brother the ANGEL.
Characteristics:
- Very easy to fly.
- Grass field operation; short take off/landing due to a big
airfoil thickness (13%)
- Large flaps and very low wing loading
- Very fast assembly
- Easy access to engine (top engine, no hatch, no exhaust
pipe needed)
- Easy access to fuel tank, ECU and radio with a large fuselage
hatch
- Easy radio installation with big fuselage hatch and servo
cover supplied
- All necessary hardware included

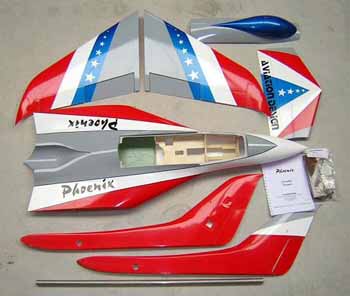

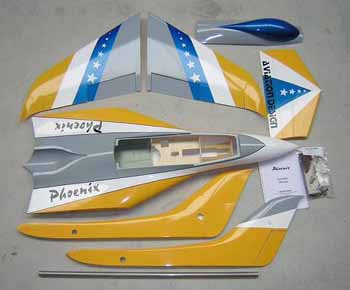

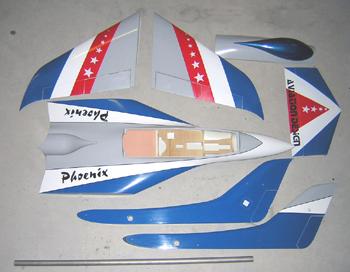

SIX Phoenix ARF models to choose from (including
the Angel scheme) and include:
-
High quality epoxy-glass fuselage painted
- All plywood and wood parts installed
- Fully molded wings with winglets, stabs and fin booms painted
- Access hatch requiring no additional framework.
- All hardware (screws, servo cover)
- Instruction Manual

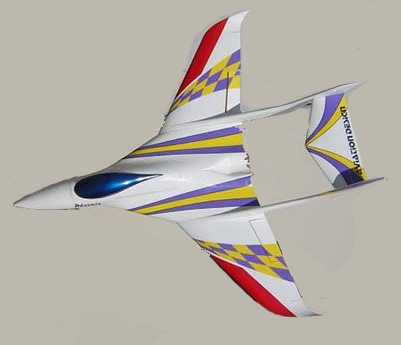

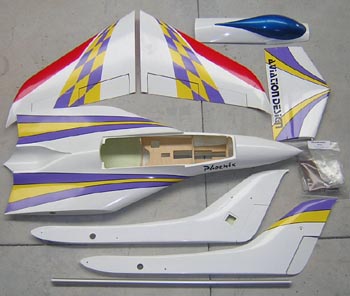

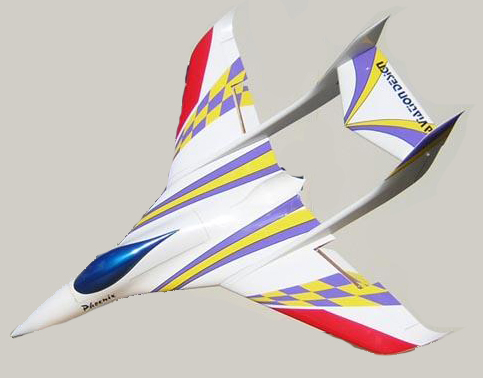

PHOENIX ARF Purple/Yellow/White: $US 1,375
PHOENIX ARF Yellow/Red/Blue: $US 1,375
PHOENIX ARF Red/White/Blue: $US 1,375
PHOENIX ARF Red/Gray/Silver: $US 1,375
PHOENIX ARF Yellow/White/Blue:
$US 1,375
PHOENIX ARF Blue/White/Red: $US 1,375
Options:
Phoenix
Kevlar 2.2L fuel tank: $US
226
Behotec heavy duty C36 Retracts with Trailing link mains and regular
nose, complete with Aluminum ball bearing equipped rims, wheels,
brakes, air support, retract valve as well as brake valve.
PHOENIX C36 complete retract set: $US
875
PHOENIX clear canopy: $US 25
|
