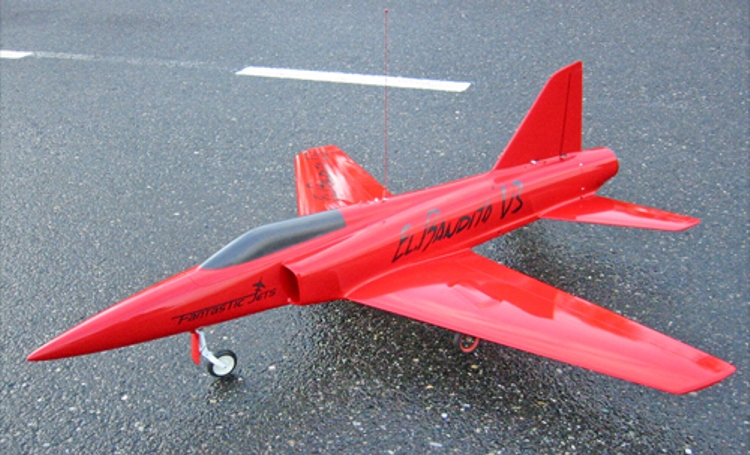

The model:
El Bandito V3 is based on Ralf Dvorak’s
first El Bandito developed in 2001. At that
time the model was designed as a sport jet
without landing gear and flew excellently
even with foam-balsa-wings. The later version
El Bandito V2 had retracts but was sold
only for a short time. Now the new El Bandito
V3 is available. The model has not been
changed regarding aerodyamics and optical
appearance However, El Bandito V3 ist a
high-quality glass fibre model with reduced
building effort. The kit contains all small
parts, formers etc. Detailed building instructions
are included.
The plane is prepared for retracts. Thus
the El Bandito V3 is an excellent allround-model
allowing everything from acrobatic to speed
flying. We are recommending the following
drive systems: DS-51-DIA HDT + Lehner
1940-12 HA + 8S 3800HDHE LIPOS or Lehner
1950-11 + 10S 3800HDHE LIPOS.
|
|
Technical data:
Wingspan: 48.5" - 1,230mm
Fuselage length: 50.5" - 1,280 mm
Airfoil: MH43
Intake area: 45 cm²
Outlet area: 45 cm²
Weight from: 5.95lbs - 2,700g (depending
on motor and battery)
El-Bandito kit: $US 755
Complete wire based retracts: $US 335
|

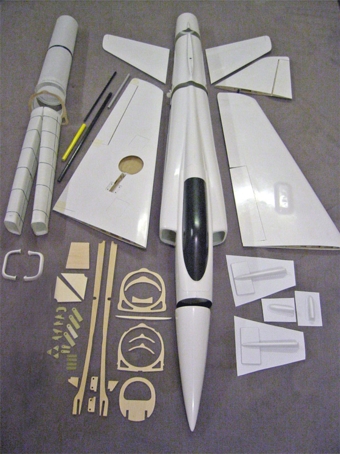

Kit Content:
|
Optional accessories:
Canopy in exclusive carbon design. Decal-Set
(Logo "El.Bandito" for fuse and wings) CNC
cut quality. Special light wheels. Pneumatic
retracts with wire struts, tubes, valve
and pressure tank. |
all molded white fuselage in 4 parts, molded
canopy
all molded left wing
all molded right wing
all molded left horizontal stab
all molded right horizontal stab
all molded ventral fin
CNC milled plywood parts (formers etc.)
CNC milled GRP parts (horns, hinges, fan
installation parts etc. all small parts
(hinges, clevises etc.)
Glass and Carbon tubes (Wing spars etc..)
Instructions on CD (with pictures and many
building hints)
|
