SCORPION Sport ARF Jet
New

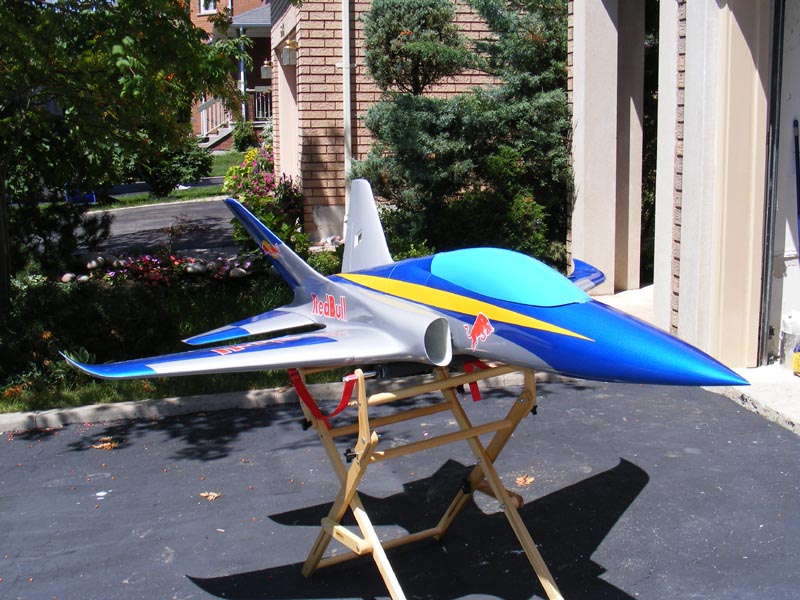

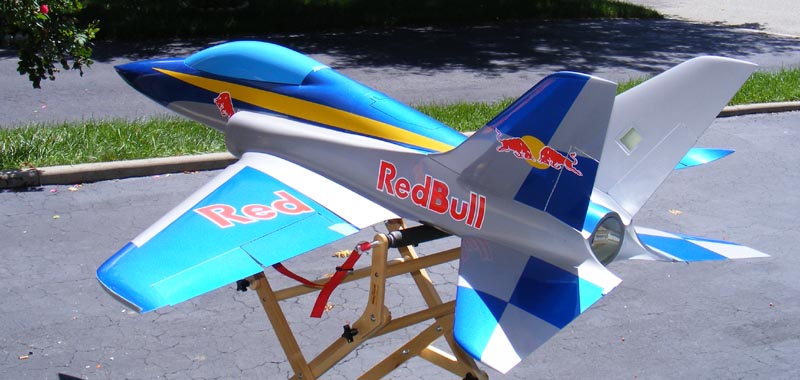

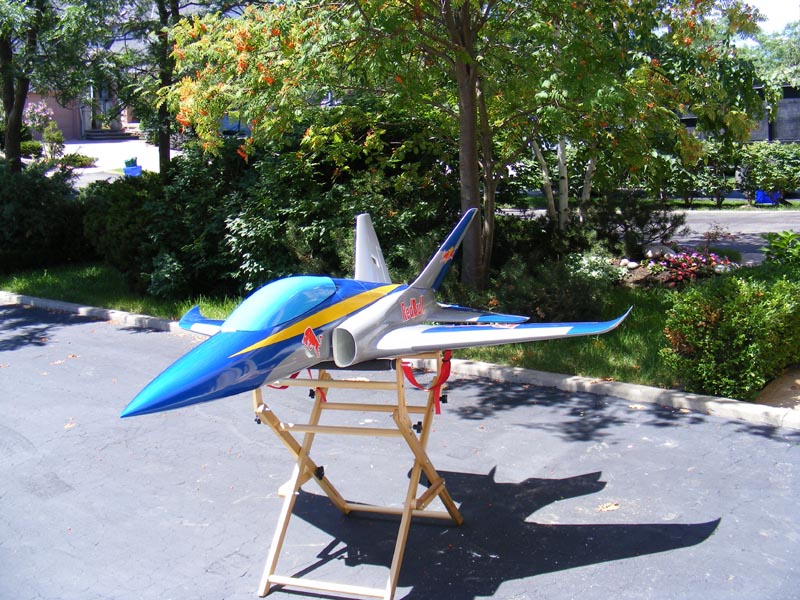

generation Scorpion
Red
Bull Scheme

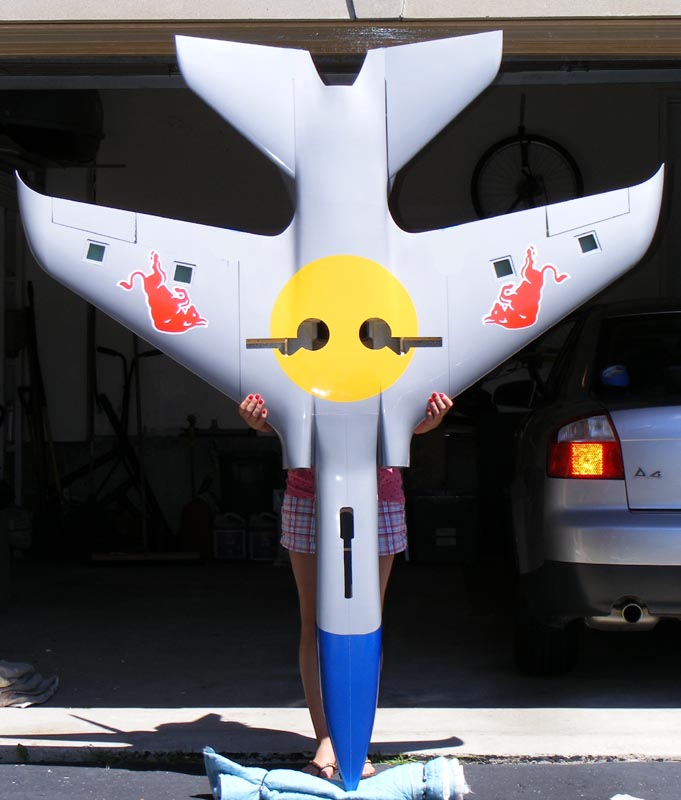

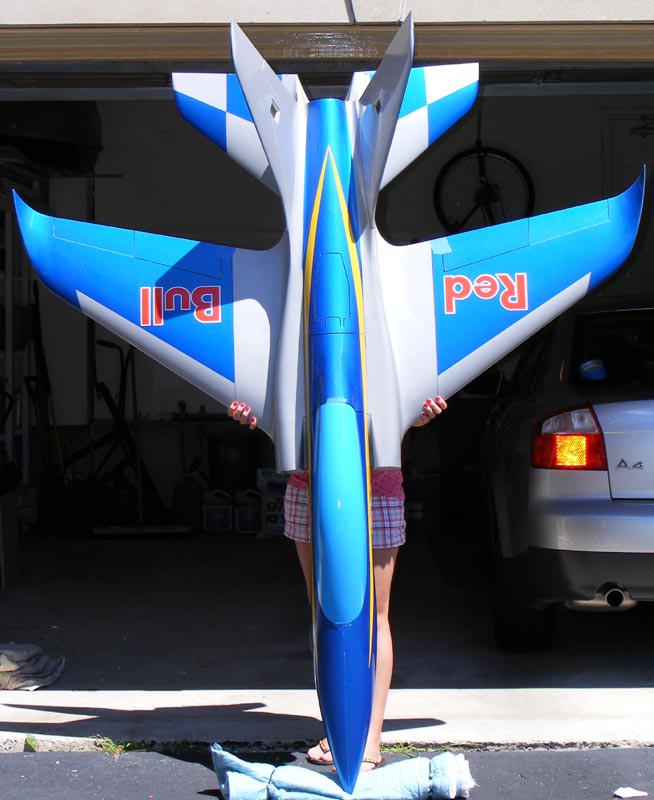

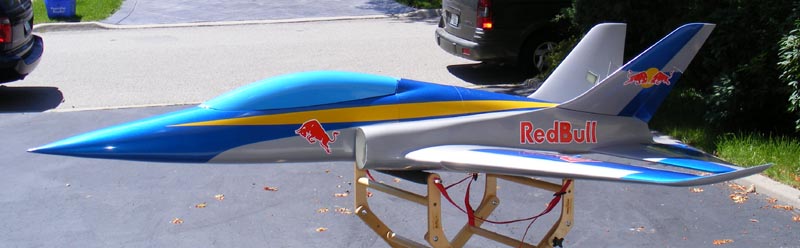

SCORPION ARF Red Bull Scheme: $US
1,795
New
Scorpion video
(courtesy
Jim Brown)

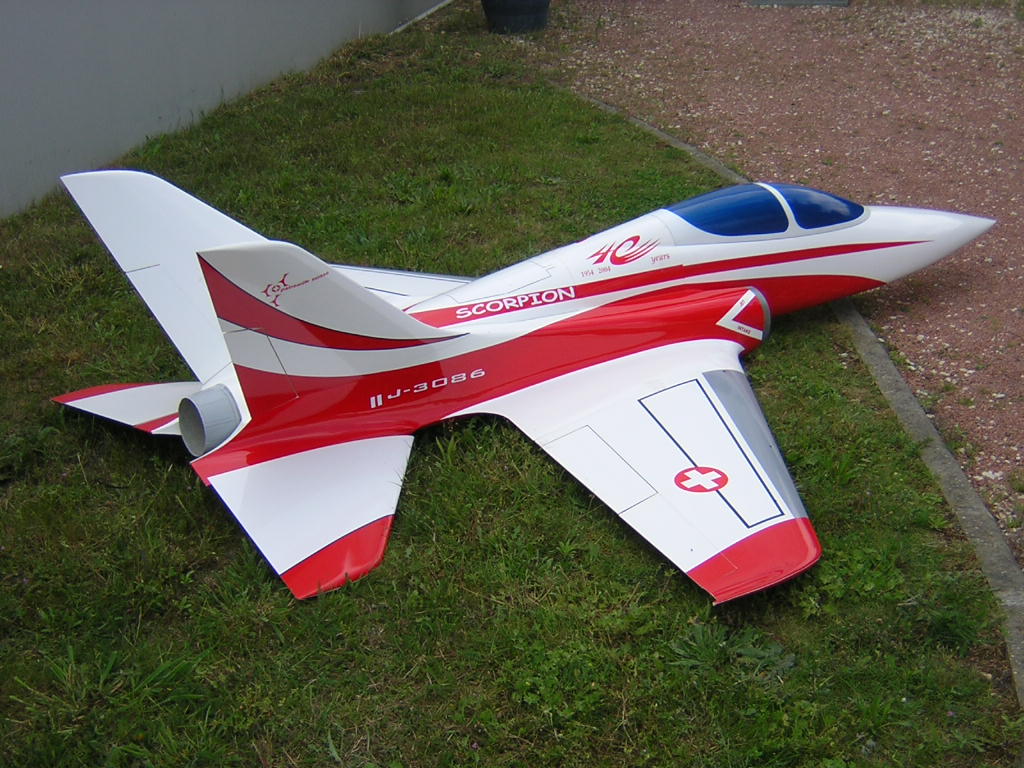

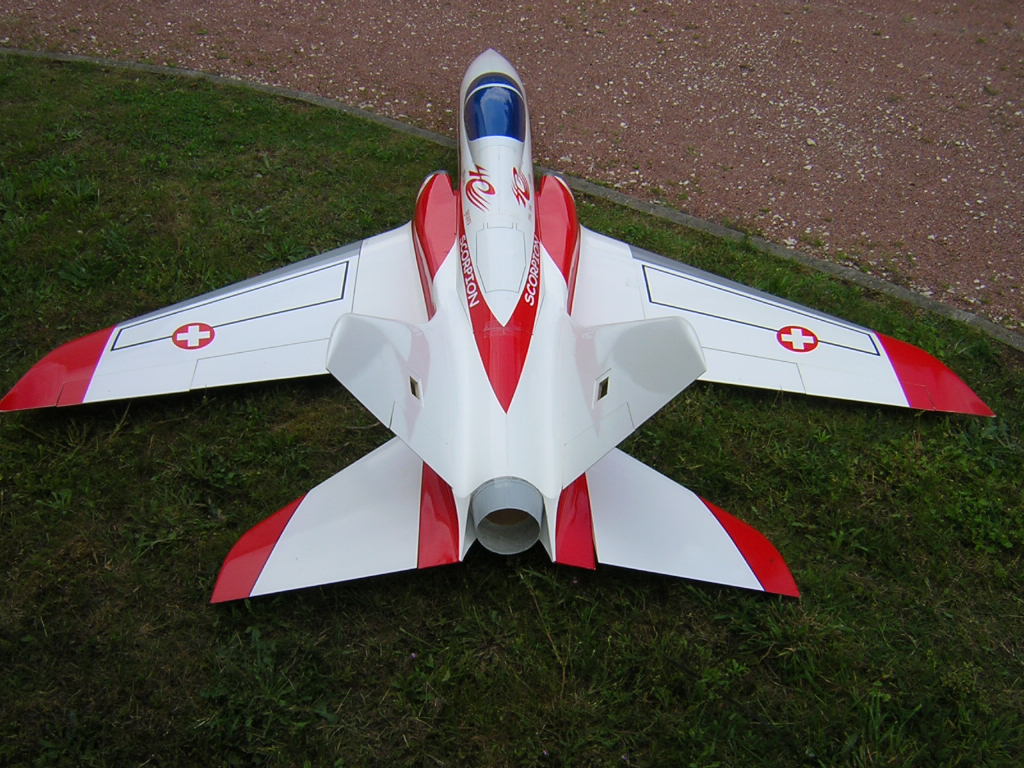

Scorpion
ARF in Swiss color scheme
IMPORTANT
CG location: After
extensive testing, the CG location indicated in the manual
is too forward to ensure a smooth and consistent landing.
We recommend the CG to be anywhere from 150 to 160mm instead
of 138mm as indicated in the manual. The new manuals will
reflect this change. You should need no lead in the nose
or heavy NiCd batteries.
Grass
operation: Since
most of us do not have the luxury of tarmac fields around
us, we found the Scorpion perfectly suited for short grass
field operation (300ft). A 2 degree +ve angle of attack
will ensure a very smooth rotation on take-off. You can
achieve this by using a larger nose wheel or inserting 1/4"
ply under the retract unit.
SCORPION ARF jet is now available
in 4 color schemes
Video
of Segio's Scorpion at the Valencia Fly-in
The SCORPION ARF jet designed for
18 - 30lbs. thrust turbines
Span:
70’’ – 1.77m
Length:
83’’ – 2.11m
Weight:
22 lbs – 10Kg.
Turbine:
18 ~ 30lbs thrust turbines
The
SCORPION ARF is our new sport model designed with a special
airfoil giving exceptional low speed characteristics and great
high speed performance. It is very gentle and perfect for
new jet pilots as well as experienced ones. It is also a perfect model for Telemetry
UAV applications. A larger SCORPION will be available for
full UAV applications.
The
SCORPION is a full composite painted in the mold ARF kit with
the bulkheads already glued in place and all control surfaces
hinged. NO gluing necessary.
The
SCORPION has a large canopy for easy access to radio equipment
and fuel tanks as well as a fuselage hatch that can be fitted
with an optional air brake.
The
SCORPION has plug in wings and fin with the
retracts mounted in the fuselage for transport ease.

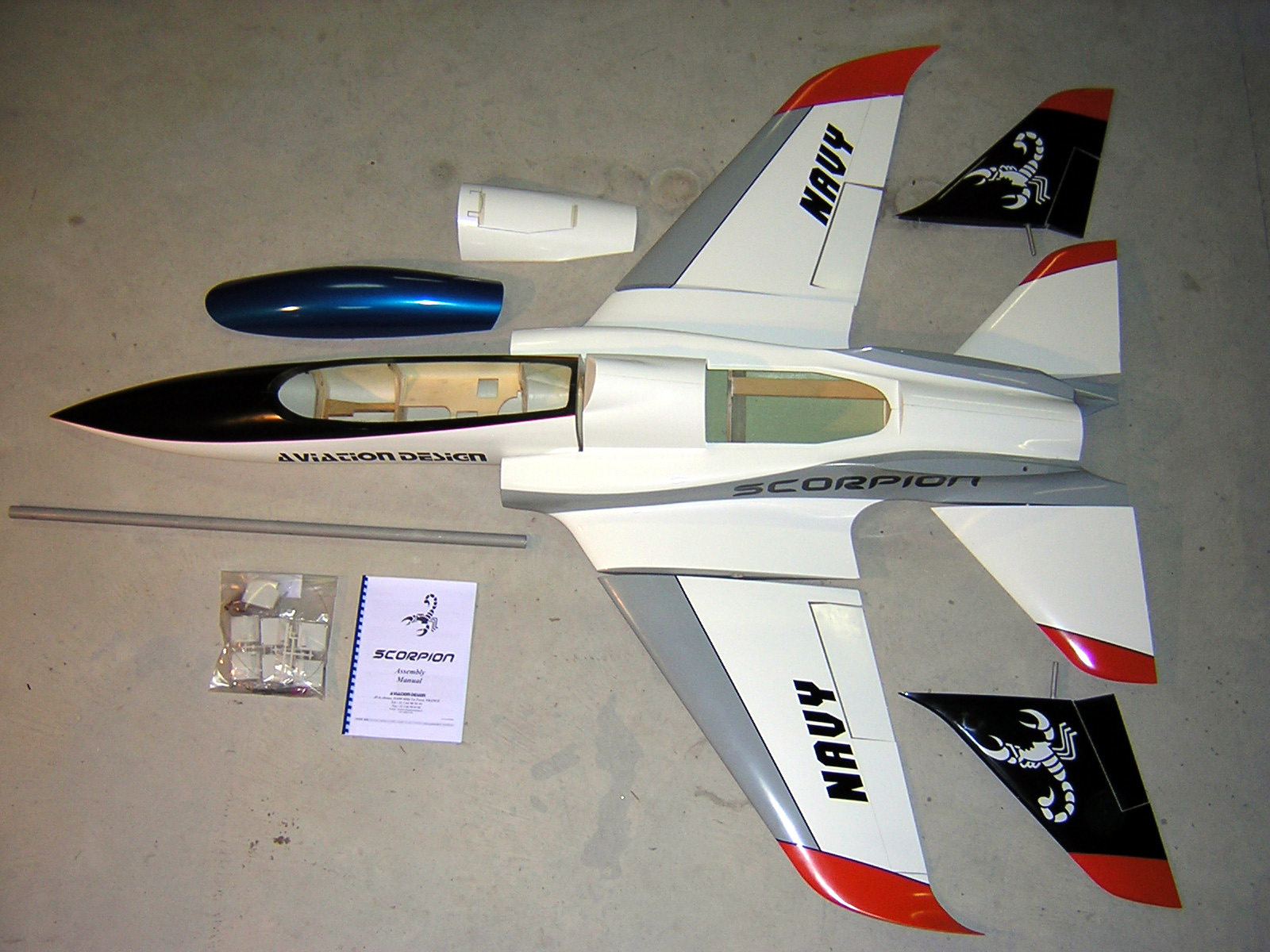

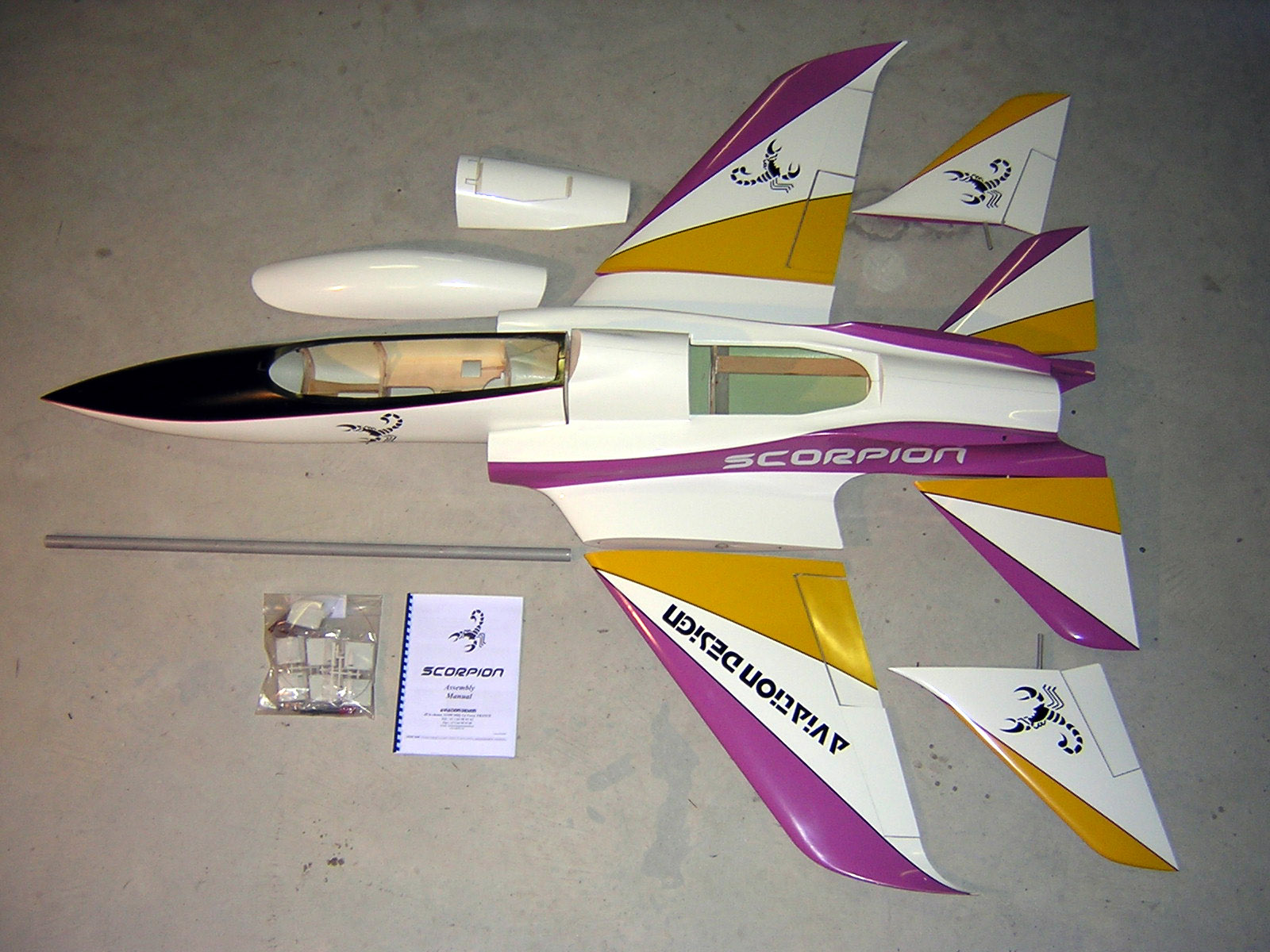

The
SCORPION ARF model includes
-
High quality painted epoxy-glass fuselage
-
All plywood and wood parts pre-mounted
-
Painted fully molded wings and fin
-
All hardware (screws, hatch latches, servo covers)
-
Aluminum wing tube
-
Instruction manual

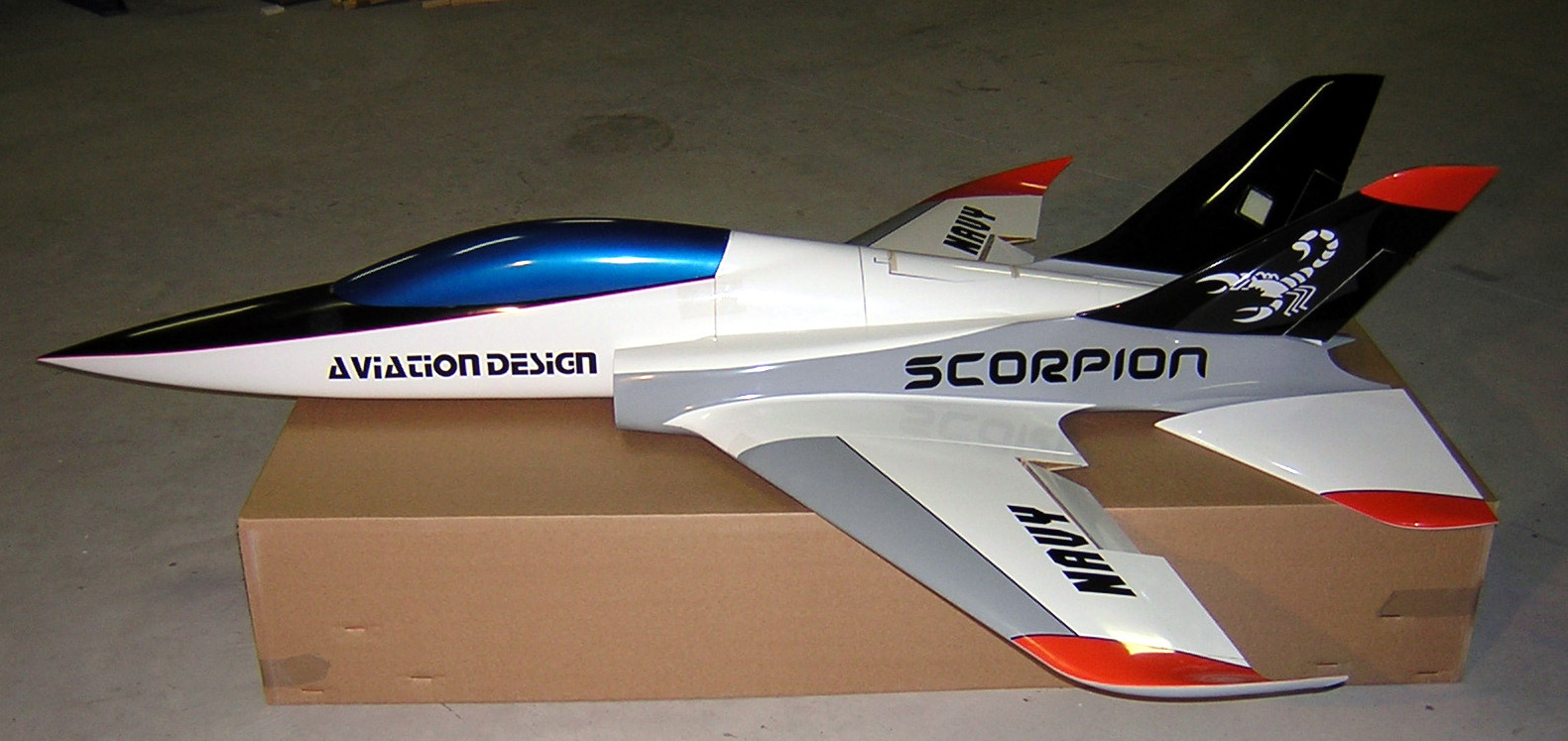

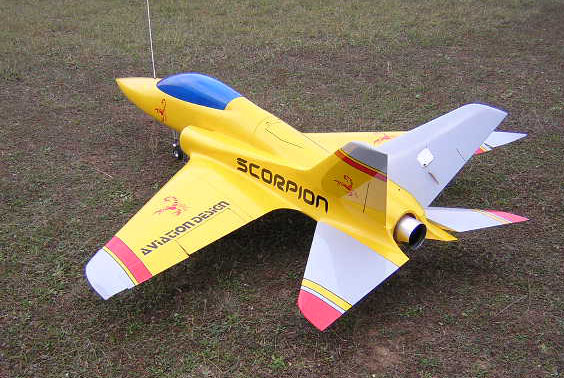

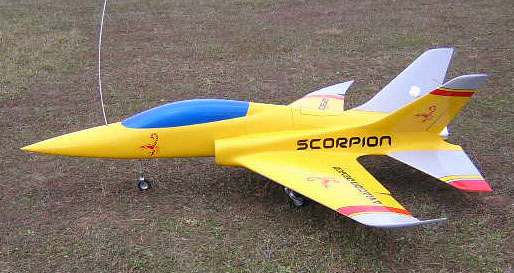

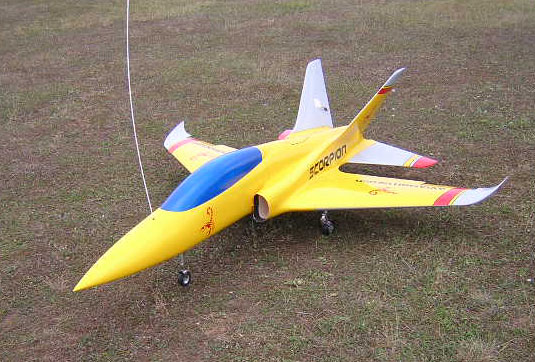

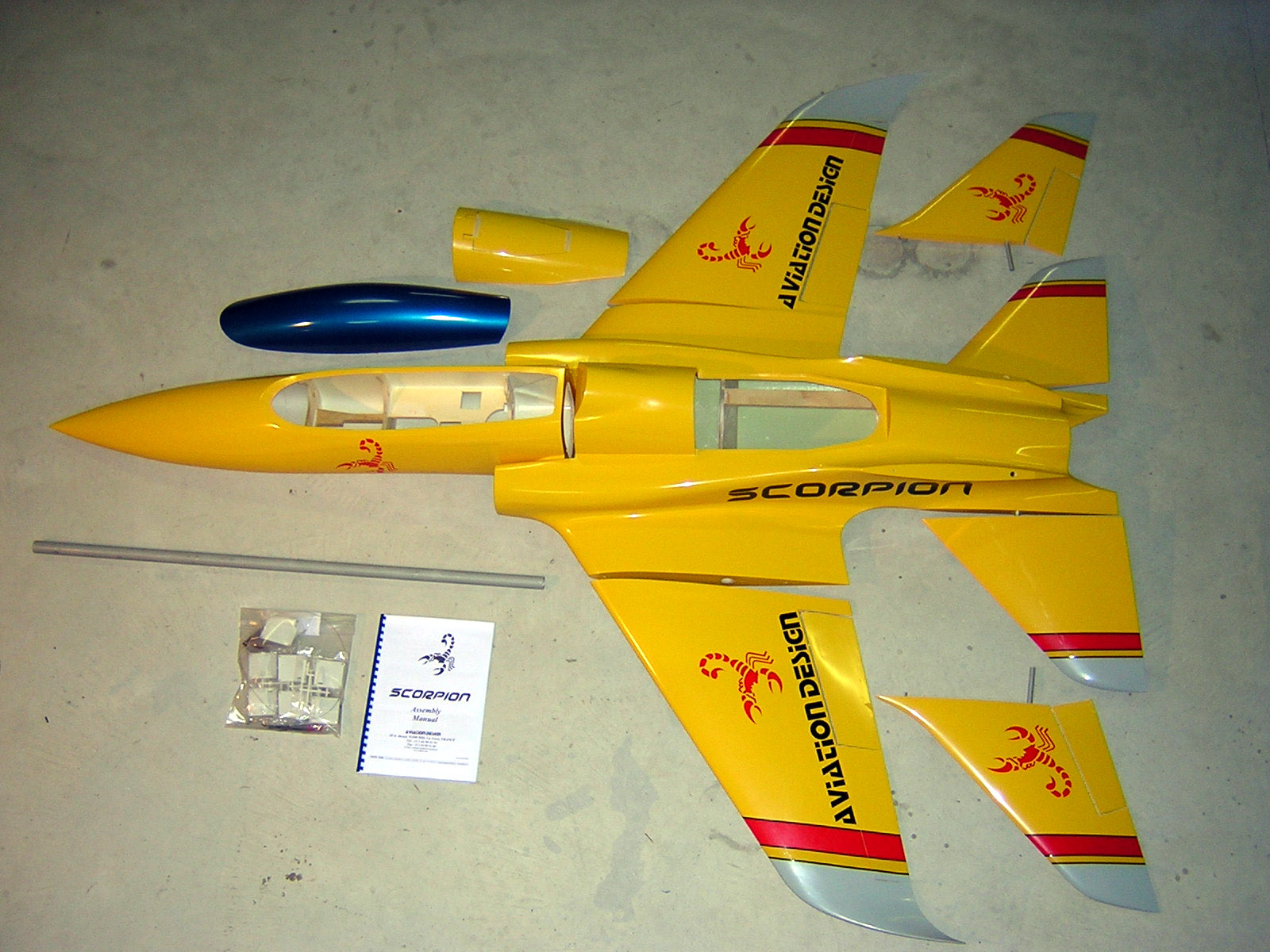

SCORPION ARF (Navy, Swiss, Yellow):
$US 1,695
Options:
Scorpion
Kevlar 2.2L fuel tank: $US
226
Scorpon Kevlar 3.2L fuel
tank: $US
248
Air brake with air ram
and valve: $US
68
Tail
pipe: $US 186
Behotec heavy duty C36 Retracts with Trailing link mains and regular
nose, complete with Aluminum ball bearing equipped rims, wheels,
brakes, air support, retract valve as well as brake valve.
NOW supplied with trailing link for
the nose as well.
SCORPION C36 complete retract set: $US
895
|
