SR-71 Blackbird

New SR71 EDF Video

SR71 EDF Video

Construction thread on RCU

Download SR71 construction manual

SR71 Turbine Video (ground test)

Length: 57.08 inches
Wing span: 29.52 inches
Shell weight including frames: 2.42 lbs

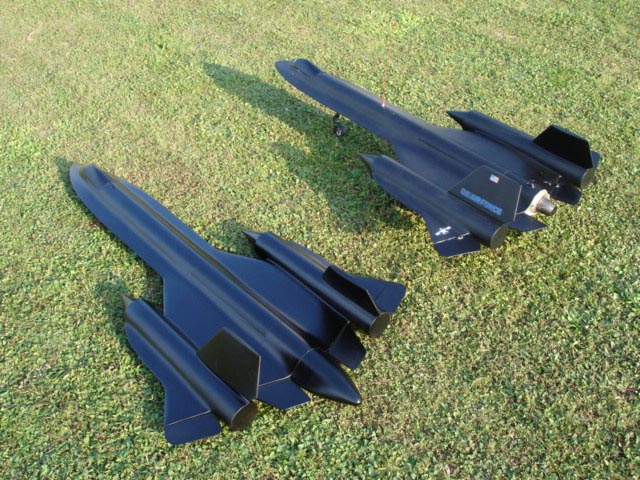

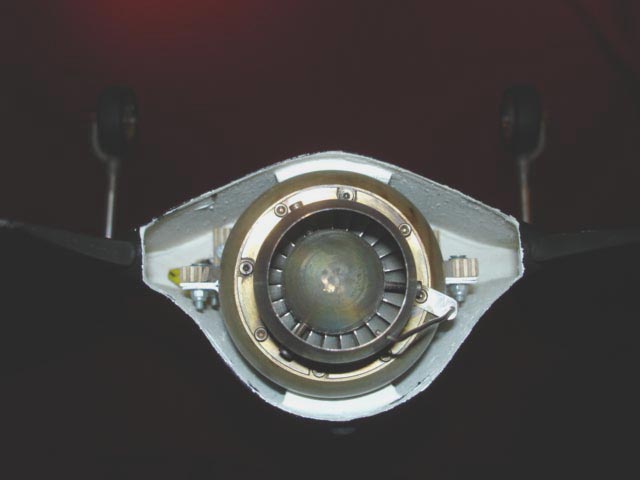

Powered: WREN 44 or EDF P
ower
No tail pipe needed

White gel coat finish: $US 529
Painted Matt Black: $US 658

Three retract options available:

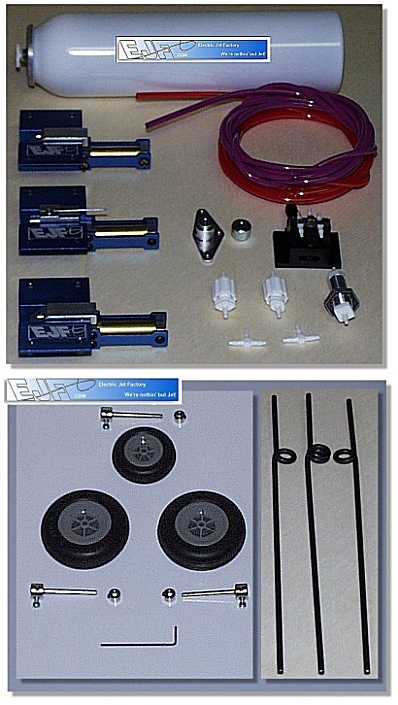

SR71 EDF Version complete retract set: $US 149.95

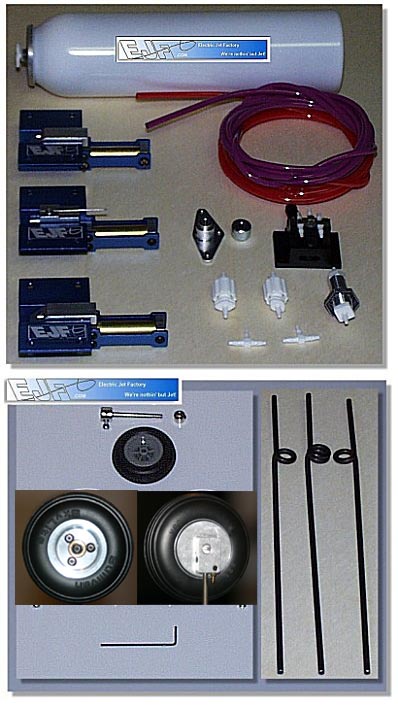

SR71 Turbine Version retract set with brakes: $US 249.95

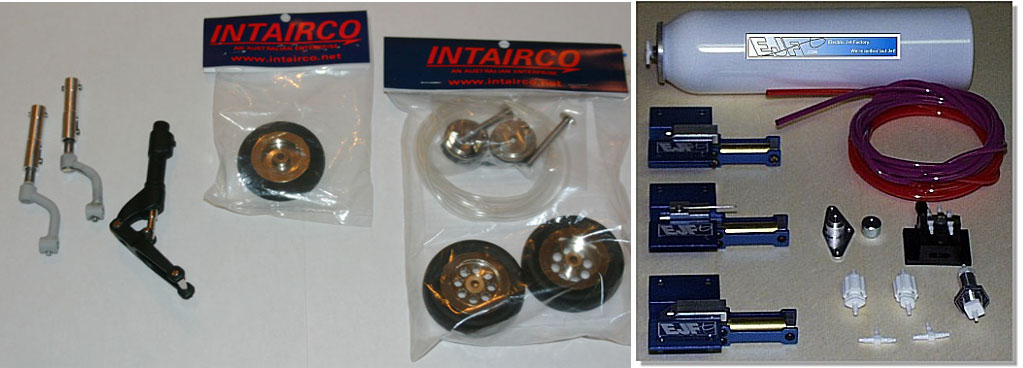

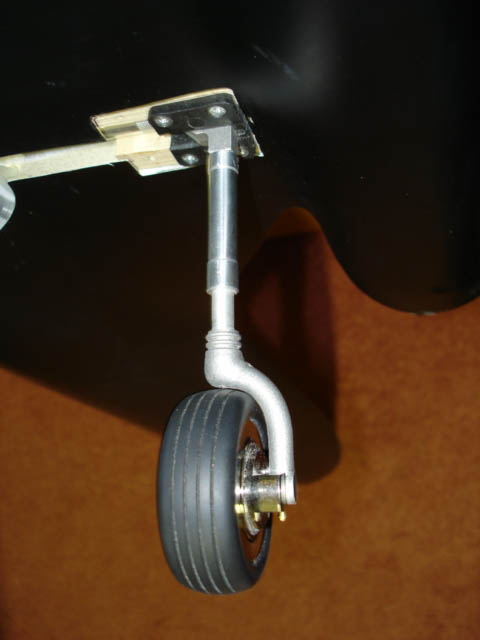

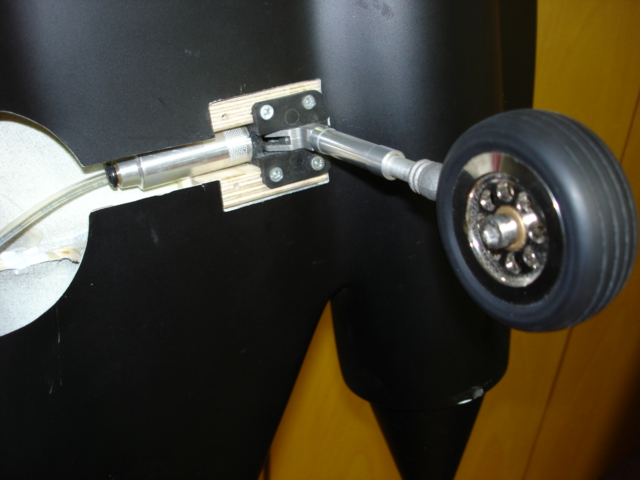

SR71 Turbine Version retract set, Intairco main wheels and brakes, Intairco nose wheel, custom made struts: $US 424.95

SR71 Blackbird EDF power recommendations:
Motor: Hacker B40-13S
Controller: Master B40-O-Flight
EDF unit: Schuebeler DS-30-DIA 3-ph
Battery: 8x LiPos 2700 HDHE (2x 4S) with a LIPO balancer 1A option

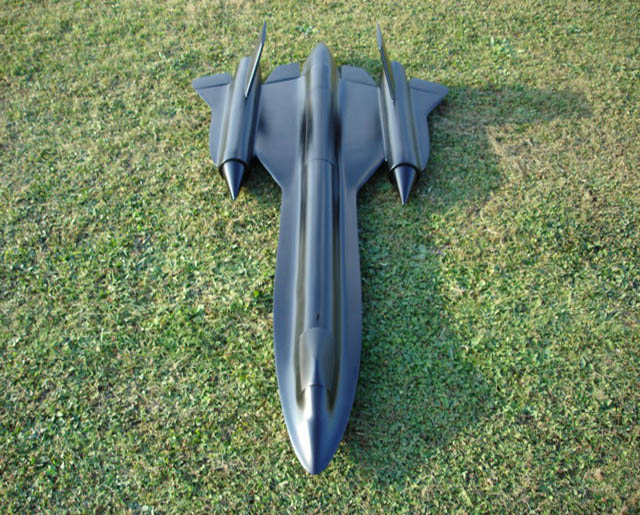

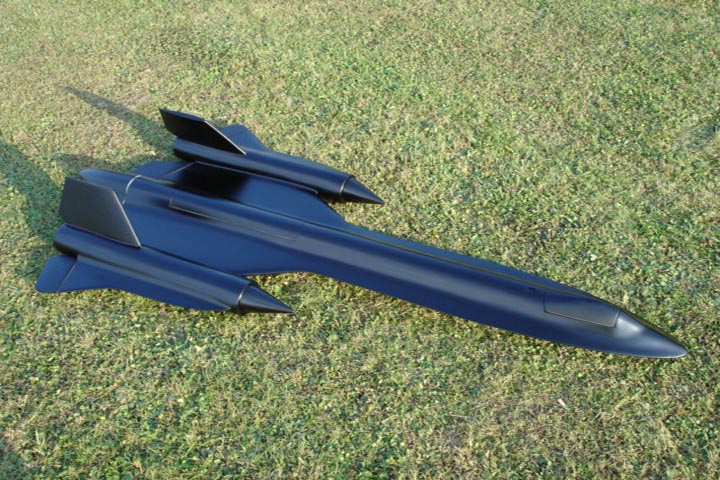

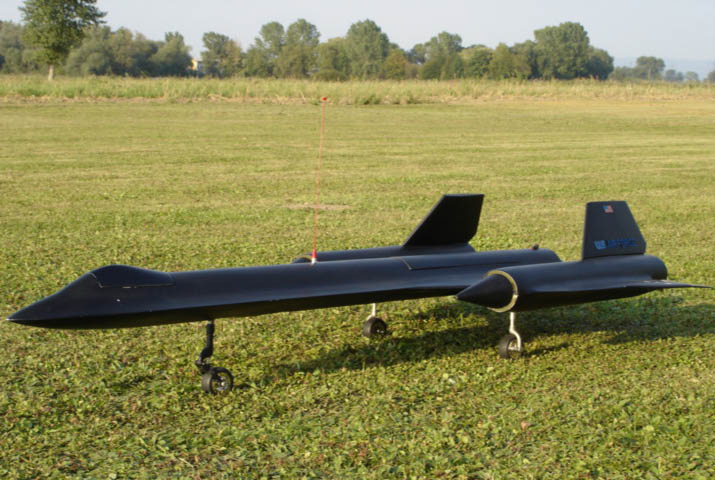

Small but exceptional, the SR71 model has a length of 57.08'' and a wingspan of 29.52''. With a full size of 1:22.5 it is not a rookie model at all, even though it has surprisingly stable flight qualities.

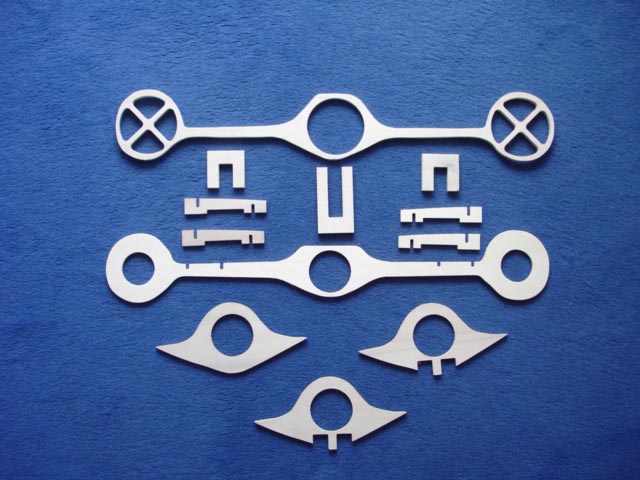

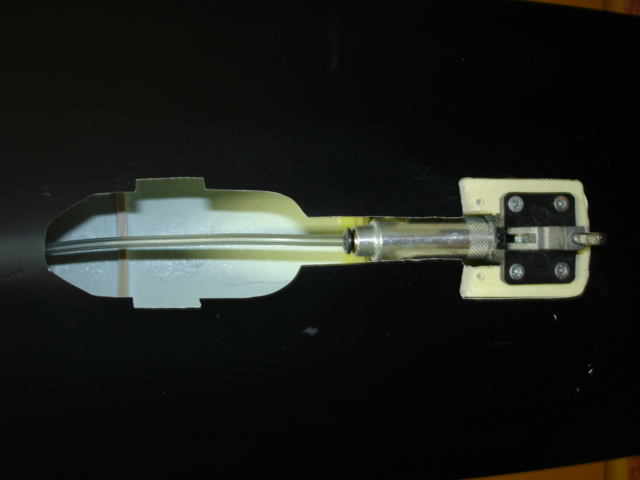

The SR71 Blackbird model is made of white composite material. It comes with one 0.24'' fuselage and wing frame CNC made of 7- ply and another one of 0.15'' poplar plywood. The transition between the body and the wing is reinforced with carbon fiber. The fuselage itself contain three more structure ribs. The landing gear compartment frames for the main and nose gear are already laminated.

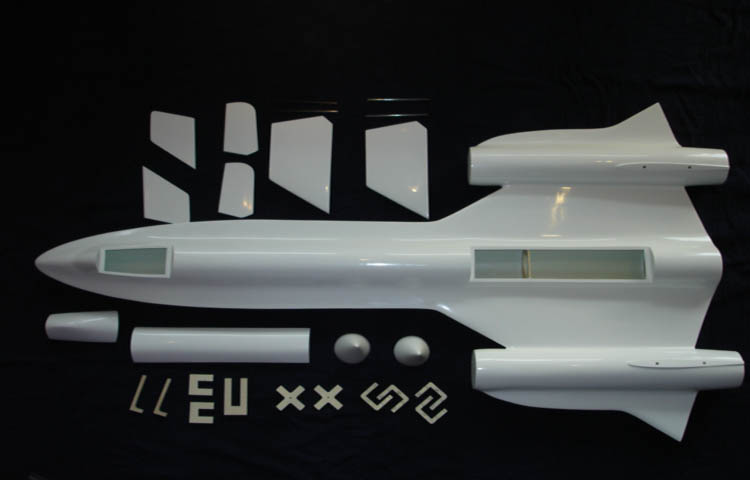

Kit includes:

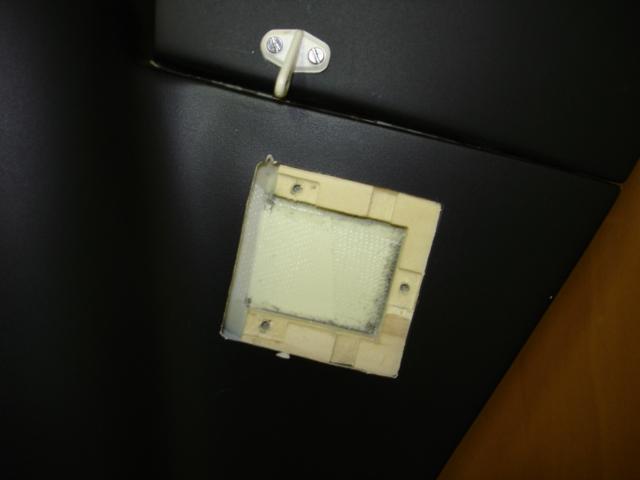

Beside the model itself, the kit includes a prefabricated solid landing gear mount point for the main and the nose gear. For the fixing of the rudder a 0.24'' carbon stick is attached. It also cotains CNC made servo frames for the aileron and elevator servos (e.g. HS5125MG). Further more a detailed and illustrated specification is attached.


 To order, please email us at sales@altecare.com
