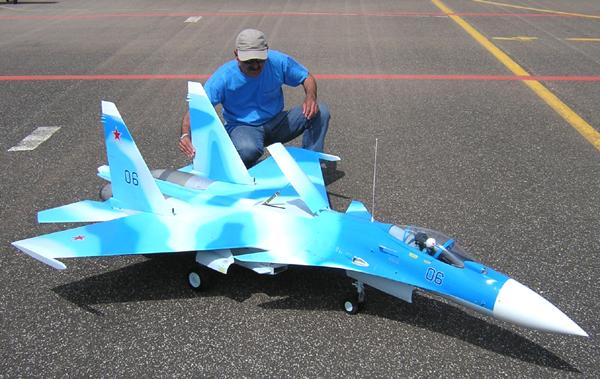

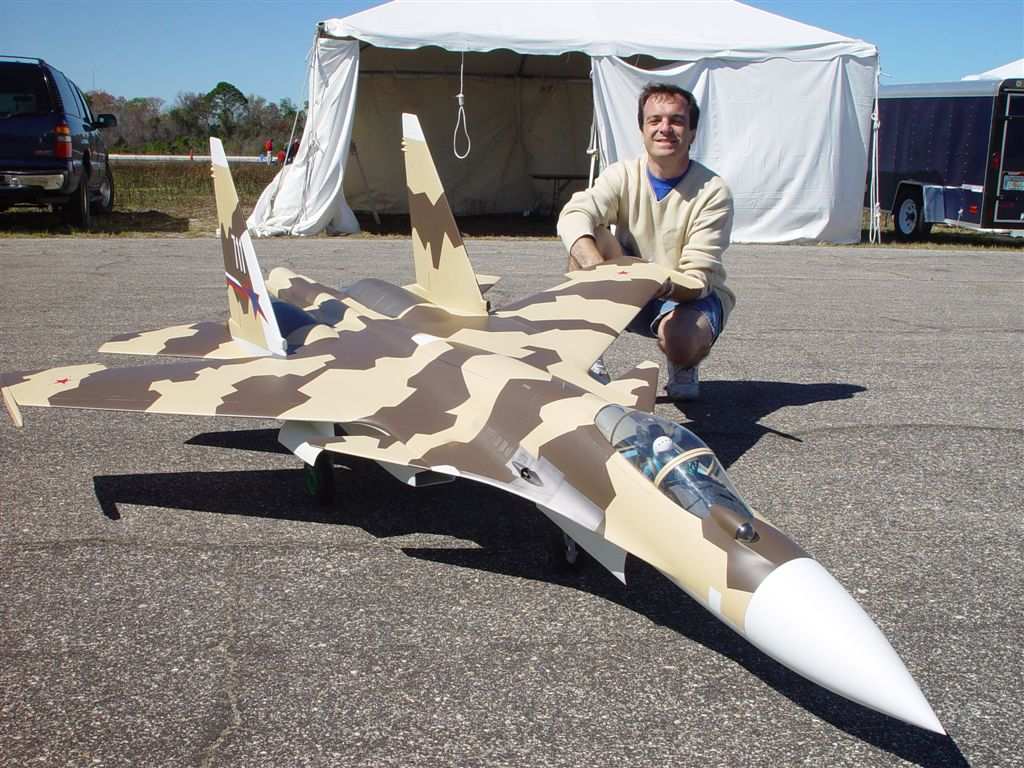

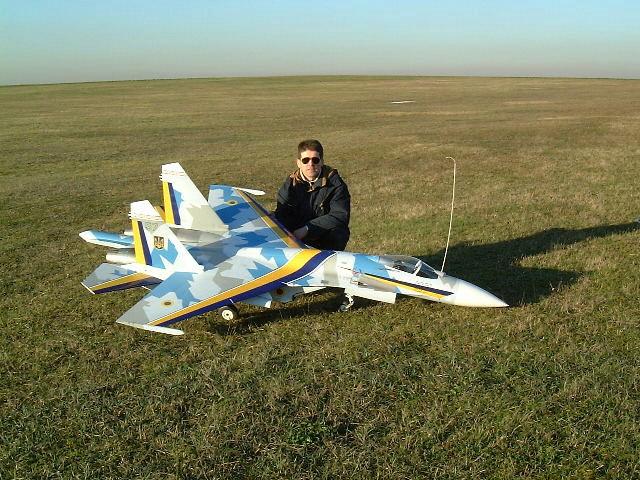

SU27/35 for Twin turbines
Specifications:
Scale: 1/8
Wingspan with missiles: 72" - 1.84m
Length: 108" - 2.74m
Weight: 40 lbs - 19Kgs
Designed for 2 turbines: 2 x 19 ~ 27lbs of thrust
The Su 27 Flanker single seat supersonic interceptor is
a typical fourth generation Soviet fighter that has come
to be generally recognized as one of the world’s best
fighters of the 90’s. The remarkable air show routines
flown by pilots of Su-27 have demonstrated maneuvers such
as the tail slide and the cobra, which simply cannot be
emulated by Western fighters. The Sukhoi SU-27 is a beautiful
aircraft both on the ground and in the air with amazing
maneuverability characteristics and firepower.The SU-27
from Aviation Design is a super scale kit with all the panel
lines, fuselage hatches, gun and antennas. It also includes
many scale details (cockpit, landing gear, pitot probes,
air brake, etc.)The kit is fully molded in composite materials
(fiberglass, carbon and epoxy) to reduce the assembly time,
and improve strength and quality. This kit is largely pre-built
- 2 wings, 2 fins, 2 ventral fins, 2 stabs and 2 canards
come finished, fully molded with panel lines engraved, aluminum
tube and spar already glued in place, the wing and fin alignment
pins are factory installed.
- Fuselage main plywood frames already glued-in
- 85% of the work is done at the factory

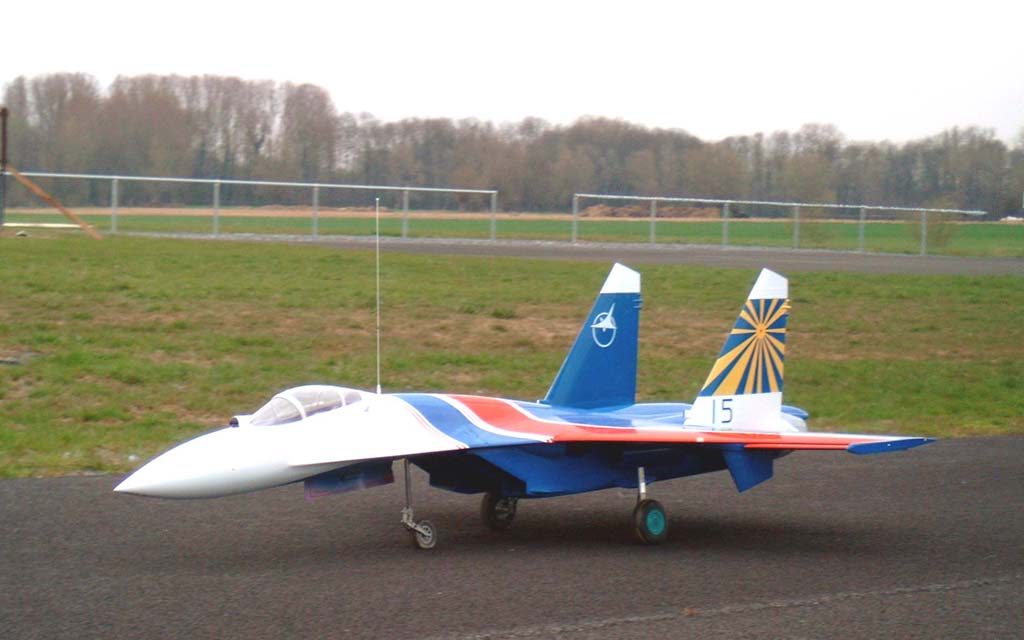

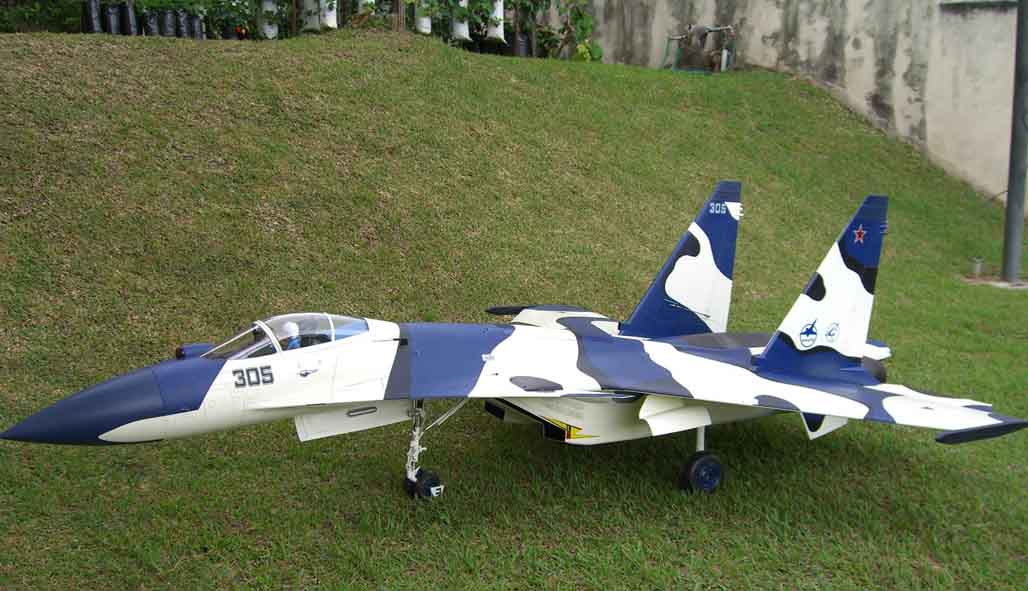

- 2 Versions are available: the Su-27, single seat fighter
and the Su-35/Su-37, single seat, with canards

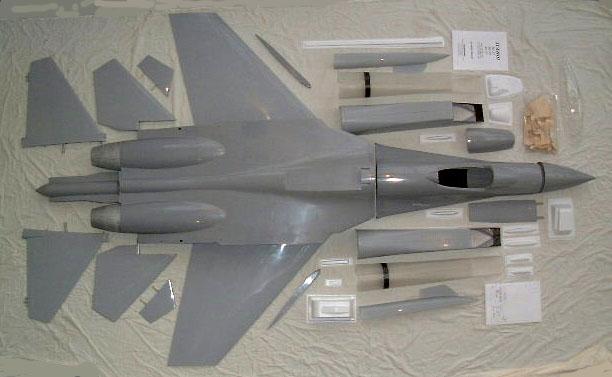

KIT
FEATURES
High
quality, grey gel-coated epoxy-glass fuselage.All the panel
lines are engraved. The fuselage is in 2 parts for shipping
(2 versions, Su 27 or Su 35).
- Nose cone and central tail boom in epoxy glass
- Air brake molded in epoxy-glass
- Main gear doors
- Canopy frame molded in epoxy-glass
- 2 Exhaust nozzles.
- 2 Epoxy-glass inlets
- 2 Epoxy-glass ducting
- Fully molded epoxy carbon wings and stabs with aluminum
spar already glued.
- Fully molded epoxy carbon fins with aluminum spar already
glued (2 versions, Su 27 or Su 35).
- 2 ventral fin in epoxy glass
- Wing tip rails
- 2 canards in epoxy only for the Su 35 / 37
- All plywood and wood parts pre-cut to shape where necessary.

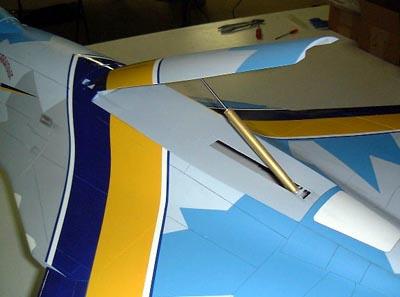

- Special Air cylinder + valve + tubing for the air brake.
- All hardware necessary.
Following
items are included in the kit
For the fuselage: a set of screws + blind
nuts for the gear
For the canopy: hatch latch

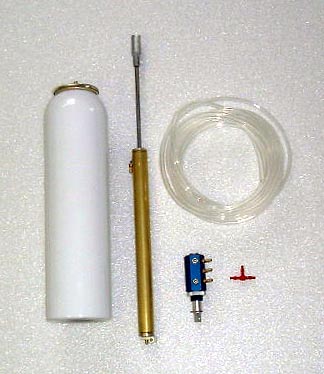

For the air brake: air cylinder + tubing and air valve

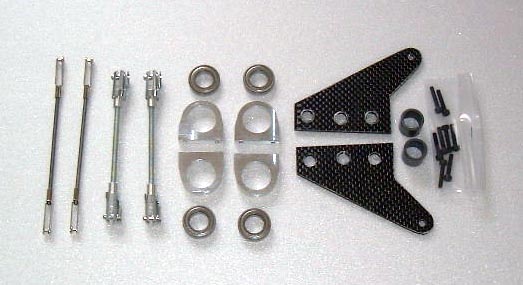

For the stabs:
4 ball bearing for the stabs
4 ball bearing mounting
8 screws M3x16 mm long
2 aluminum link M4
2 threaded rod M4
2 carbon control horns
ABS
cockpit interior and scale accessories
- Clear-formed canopy.
- Cockpit detail kit includes 1/8 full body jet pilot, 1/8
ejector seat & instrument panel.

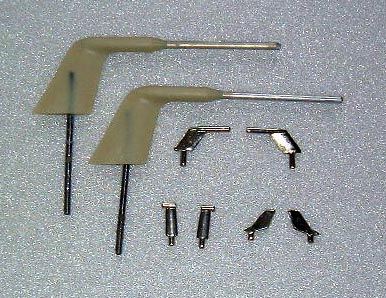

- Pitot probes and incidence probes for the Su 27 or Su
35.
- Vacuum parts
- Instructions in English and plan SU27
and SU35/27
SU27
Kit: $US 4,095
SU35/37
kit: $US 4,295
OPTIONS:

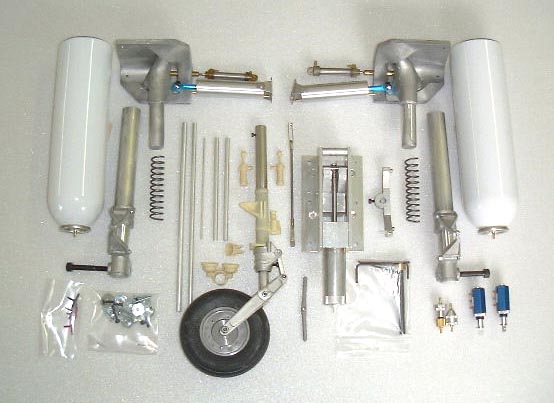

Complete
Landing gear + gear doors kit: $US 1,845
ADJ 410 for the SU 27
ADJ 430 for the SU 35 - 37
It is made from aluminum and includes also plastic parts

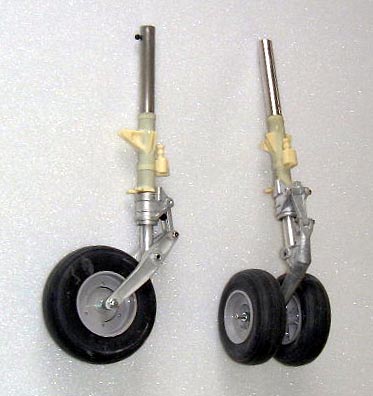

For the gear, it includes 3 rotating retracts system, 3
oleo struts, 4 way valve, tubing, connectors, air tank,
filling valve, ...

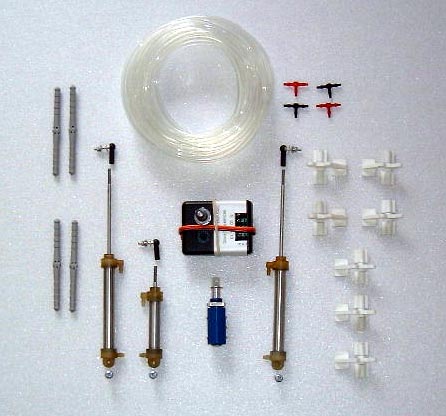

For the doors, it includes 3 air cylinders, electronic gear
door cycler (3 channels), 4-way valve, tubing, connectors,
air tank, door hinges, and ball links

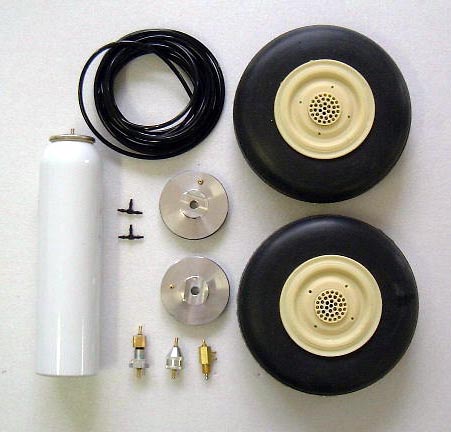

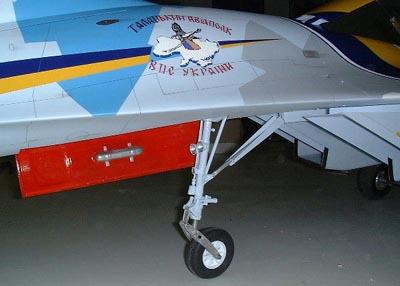

For the Su 27, the set includes 2 x 125 mm diameter wheels
+ scale cover + brakes and 1 x 88 mm diameter nose wheel
For the Su 35, the set includes 2 x 125 mm diameter wheels
+ scale cover + brakes and 2 x 75 mm diameter nose wheelValve,
tubing, connectors, air tank, filling valve and all included.

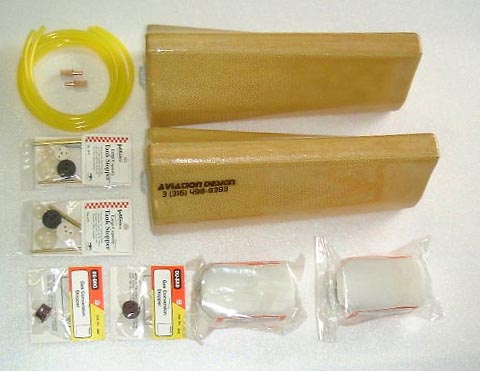

Kevlar Fuel Tanks: $US 395
ADJ 450 - 2 Fuels cells molded in Kevlar
with a capacity of 2 x 2.4 liters
All tubing and hopper tanks are included

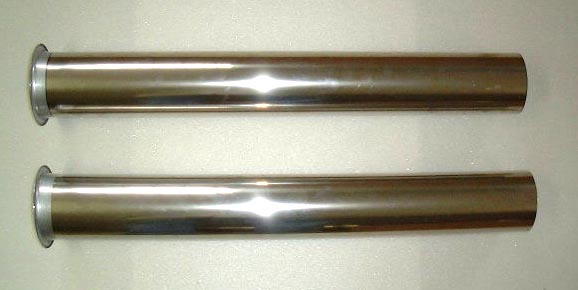

ADJ

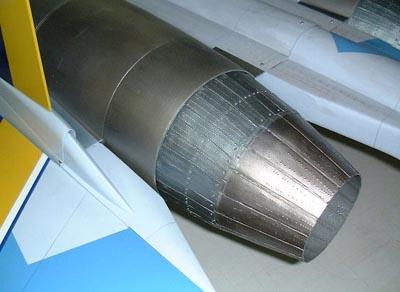

460 - 2 stainless steel tailpipes: $US
345
