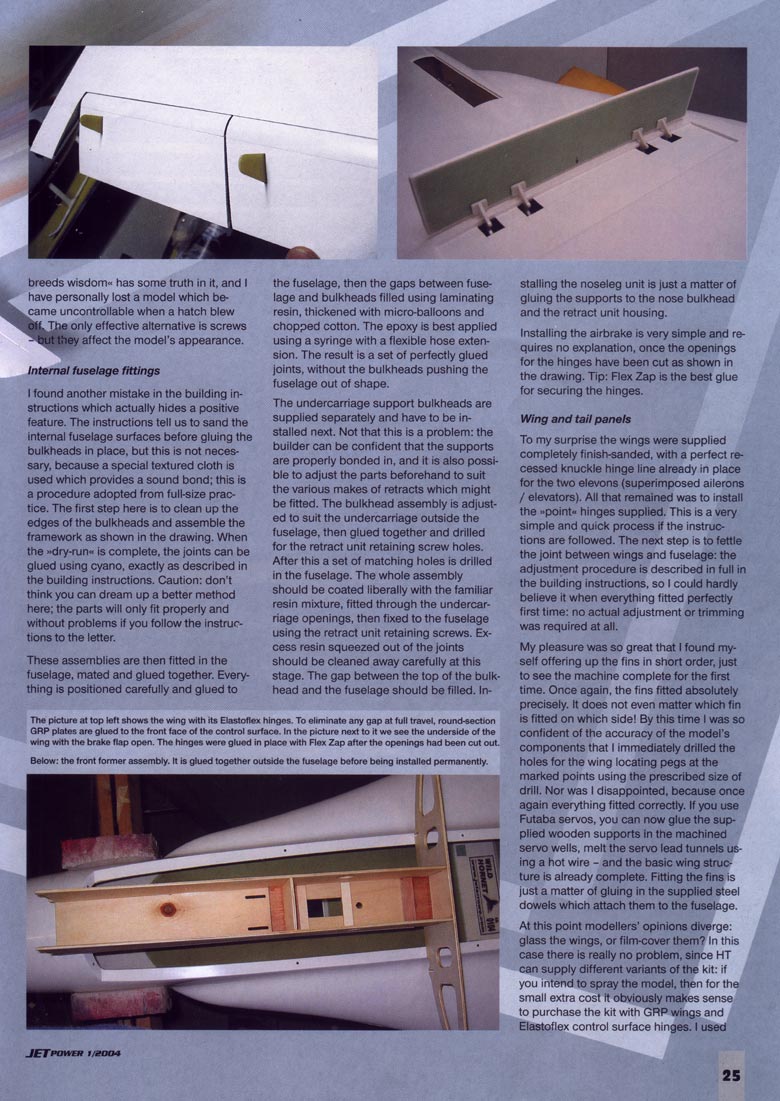

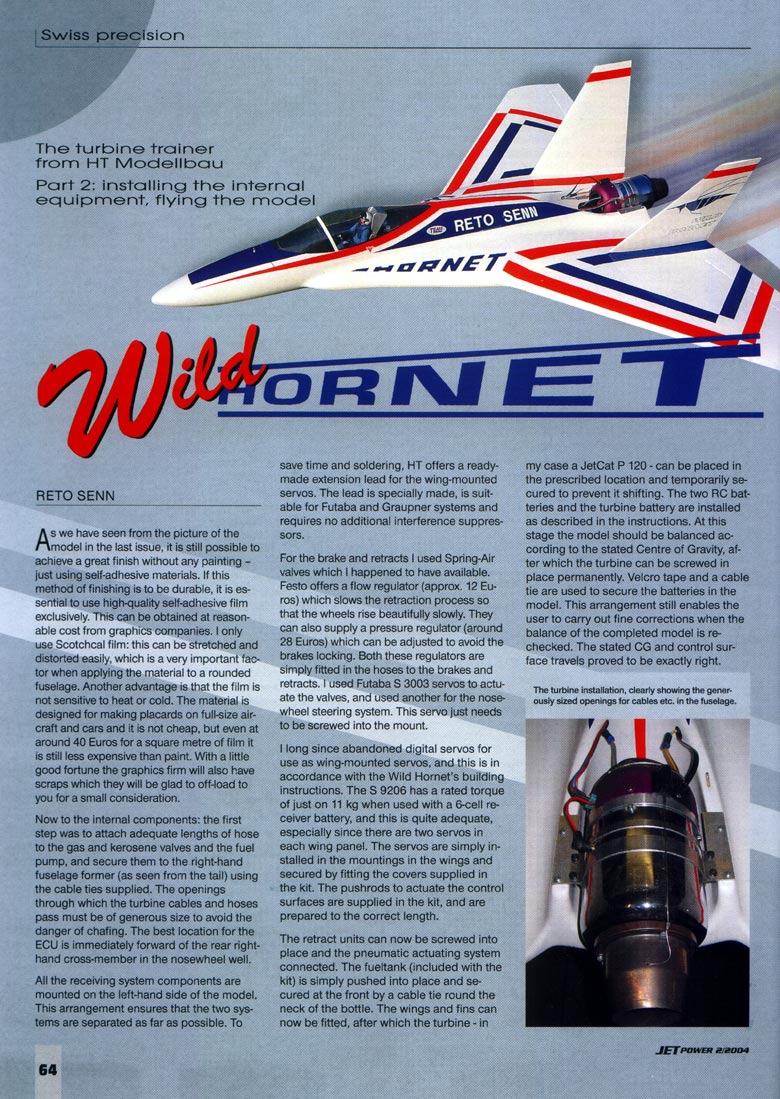

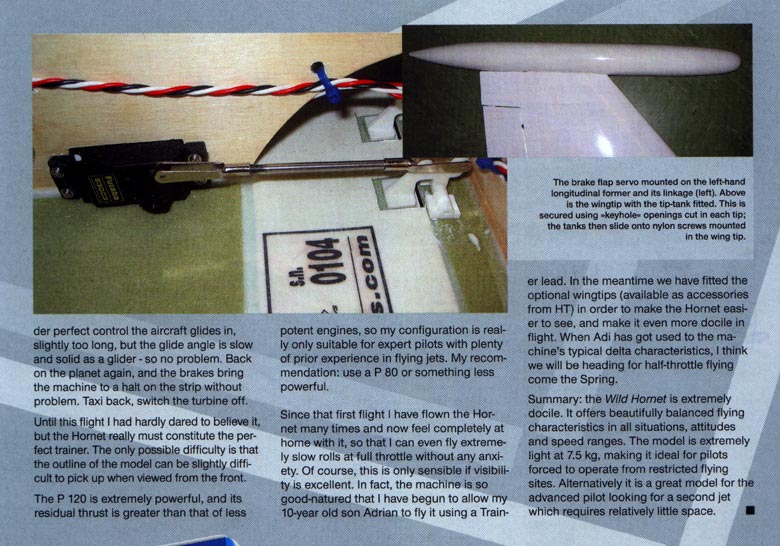

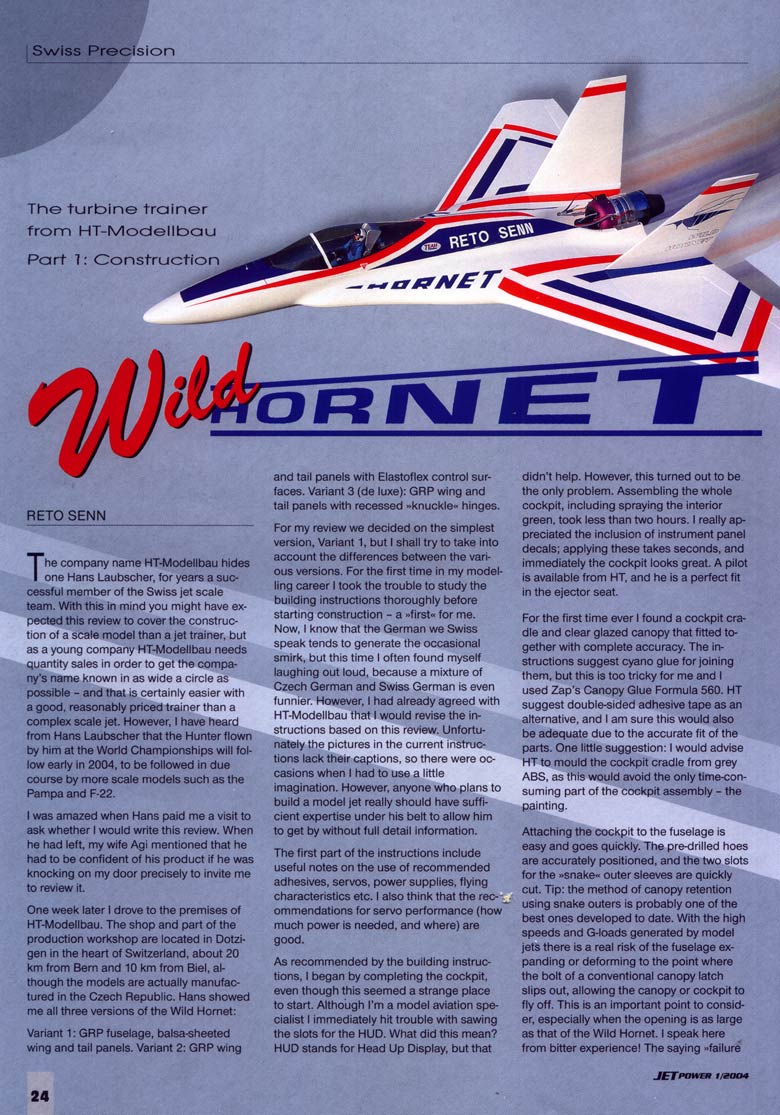

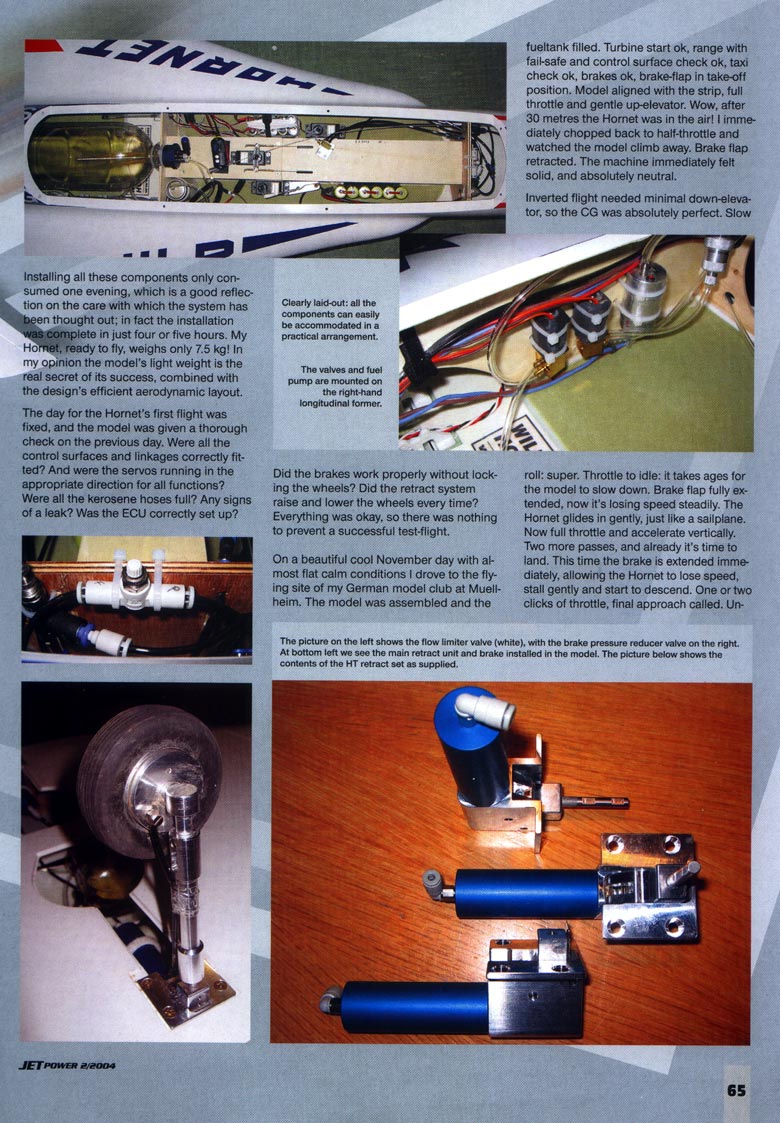

Wild Hornet Jetpower magasine
review (click on individual pages)

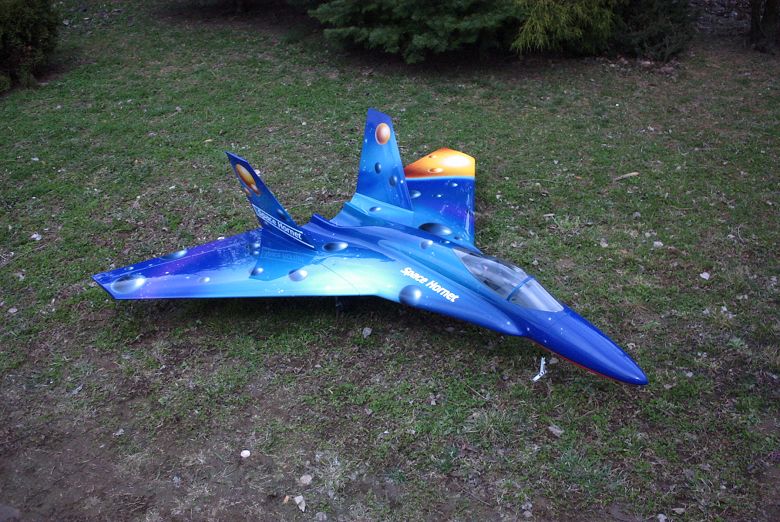

WILD HORNET - has come to existence
based on a requirement for a Jet trainer which has good
looks, with a high level of pre-assembly and excellent
flight characteristics both at low and high speeds as
well good aerobatic capabilities. The Wild Hornet can
reach speeds of 240MPH or 380 km/h.
Hans Laubscher, a member of the Swiss
Jet team and winner of many Jet events, has designed this
trainer with performance and looks in mind. The attribute
WILD has been given to the airplane for its strong construction
that withstands a lot of abuse that jet trainers go through.
With a Behotec J66HP-A, the model’s performance is unlimited.
Wing span: 67”
Length: 63”
Weight: 16 ½ Lbs dry
Min. speed: 15.5 mph
Max. Speed: up to 248 mph
Turbine: 55 - 130 N (13.5 - 29 Lbs
thrust)
The Wild Hornet is available in two
different packages:
|  |
|
|
Deluxe is a fully laminate version of Hornet,
the aileron hinges are worked in during the
laminating process already.
They are vacuum degassed (the laminate-Herex
sandwich, as well) in a separate form and hung
additionally on the wing using a carbon rod.
The wing construction is carbon-reinforced.
|
|
|
|
|

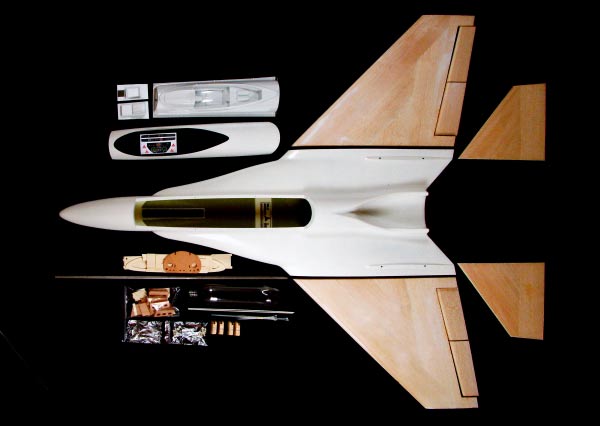

Laminate body of white color, polystyrene wings
and direction indicators covered with balsa,
reinforced with the laminate brace, laminate
braking shield, 2l tank, milled out plywood
parts for fitting of servos and electronic equipment,
a pressed piece of the clear covering of the
cabin, pressed pieces of the cockpit and of
the pilot's seat, duralumin support pipe and
other small parts necessary for the model finishing
(hinges, screws, servo control rods with a thread,
servo forks, transfer pictures for the cockpit...).
The wings are provided with completely made
ailerons with the laminate roots in the wing,
seated line for the supporting tube of the wing
in the angle required, and milled out servo
shafts.
The partitions are equipped with the so called
lock for easy and simple assembly. Also, the
cabin and body cages are prebored to make it
easy for the model builders to seat the cabin
on the body.
Detailed building instructions are added to
the building-block system, incl. photographs.
|
$US
949
$US
1,495

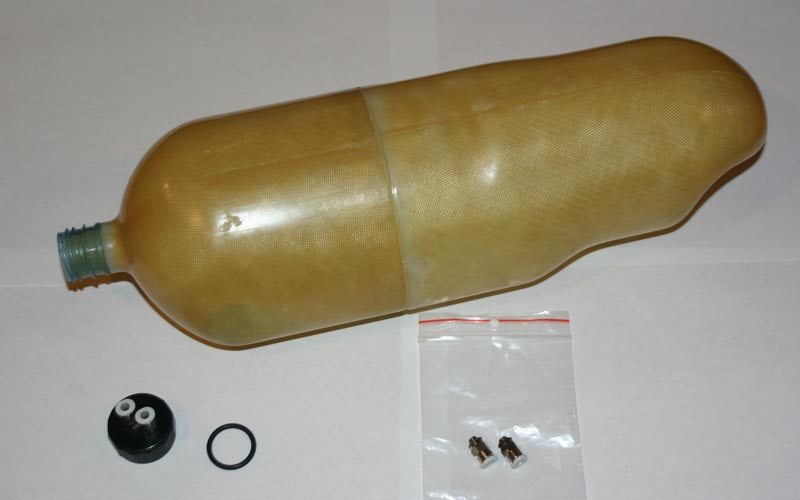

2.4L Kevlar Tank: $US 125
Pilot in
white: $US 41
Pilot painted
to match color scheme: $US 65
Tip tanks
(Pair): $US 55
Rockets (Pair):
$55
Retract door
set: $US 55
Laminated
rudders with pre-hinged surfaces: $US 61
Wing tip
protectors (laminate): $US11
Wing tip
protectors (Carbon): $25
Assembly
of all wood/air brake etc.: $US 400
3 color finish:
$US 798
4 color air
brush: $US 1,105
